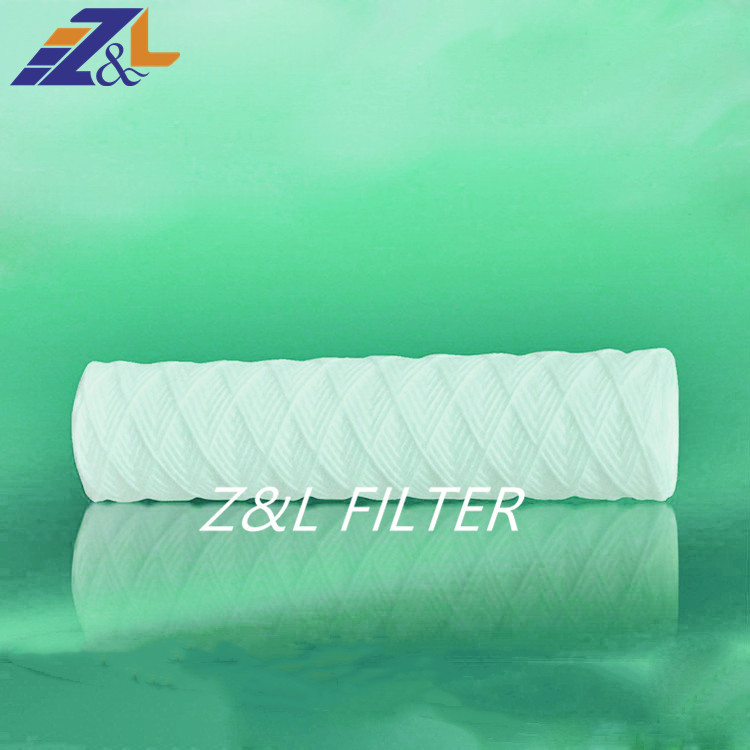

5", 10", 20", 30", 40",50",60" PP Yarn Water Filter Cartridge Fiberglass String String Would Filter Cartridge

Item No.: PP Yarn Water Filter
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
Z&l
Warranty:
1 Years
INQUIRY
Quick Details
Place of Origin: Hebei.China
Brand Name:Z&L
Filter Media::  PP / bleached cotton / glass fiber
Support Layers::  Polypropylene
Micron Rating:: 0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um
Inner core:: Reinforced Polypropylene
Outer Cage, End caps:: Reinforced Polypropylene
Seal Method:: Thermal Bonded, No Adhesives
O-rings/gaskets:: Silicone, Nitrile, EPDM, Viton, Teflon, etc
Type: Pleated Filter Cartridge
Product name: PP String Would PP Yarn Filter Cartridge For Mineral Water
Application: Pharmaceutical, chemicals, foods

 Product Introduction
String Wound Cartridge String Would Filter Cartridge is made of pp or cotton or glass fiber which used for filtration in a high dirty
holding. The material is wind on the pp core or stainless steel core. This kind of filter cartridge can withstand
different condition, with conform with FDA standard requirement.
Specification Material of Construction
• Filter Media: Polypropylene, cotton
• Core: Polypropylene or stainless steel
• Seal Material:Silicone,EDPM,Buna,Viton, Teflon
• Micron Rating:  1µm, 3µm, 5µm, .. 100µm
Dimensions
• Outside diameter: 62mm, 112mm
• Inside diameter:28mm
• Length: 5", 10", 20", 30", 40",50",60"
Recommended Operating Conditions - Polypropylene:
200°F with stainless steel cores; 120°F with polypropylene cores
 - Cotton:
250°F with stainless steel cores;120°F with polypropylene cores

Product Paramenter List
Model PPY Support
 Core
Dimension Micron
Rating
End Cap Configuration Seal Length
Inch
PPY-A
PP
PPY-B
Cotton

P-polypropylene
S- Stainless  steel 304
G -Stainless steel 316
A- ID28mm
  OD62-65mm
B-ID28mm
  OD110-115mm

1μm
3μm
5μm
10μm
 ........
 ........
100μm
Code0-DOE( no end caps)
Code 3 -SOE flat closed end/ 222 Orings
Code 6-SOE flat closed end/226 Orings
Code 7 -SOE fin/ 222 orings
Code 8-SOE fin /226 orings


E-EPDM
N-Buna
S-Silicone
V-Viton
T-Teflon
 5:12.7
10: 25.4
20: 50.8
30: 76.2
40: 101.6
50:127
60:152.4

Product information List
Item Name PP String Wound Water Filter Cartridge
Micron Rating 1, 5, 10, 20,25,30, 50, 75, 100
Inner/outside Diameter  Can design
Length 9.75",9.87",10",20",30",40",50",60"
Filter material Polypropylene
End Cap Flat ,222 O-Ring,226 O-Ring,Fin
flow pressure PP: 4.0 bar(58psi) at 25 (77 )
Bleached cotton: 5.0 bar(72psi) at 25 (77 )
Filtration efficiency ≥ 80%
Max operating temperature <80 (176 oF)
Sterilization Not recommended
Normal Operating Temperature PP : <80 (176  ) at P≤1.0 bar (14.5psi)
Bleached cotton:150 ℃ (302 ℉ ) at P≤1.0 bar (14.5psi)
 Packaging & Shipping

Most reasonable and competitive price
Courier service UPS , DHL ,TNT and EMS for light weight items
Delivery Time Stocked items, within 5 days
Payment Method T/T, Western Union, L/C, Paypal
Package
Type 1 Carton Box + Pallet
Type 2 Plastic Bag + Carton Box + Pallet
Type 3 Plastic Bag(Design) + Carton Box(Design) + Pallet
Type 4 Plastic Bag(Design) + Carton Box(Design) + Wooden Case

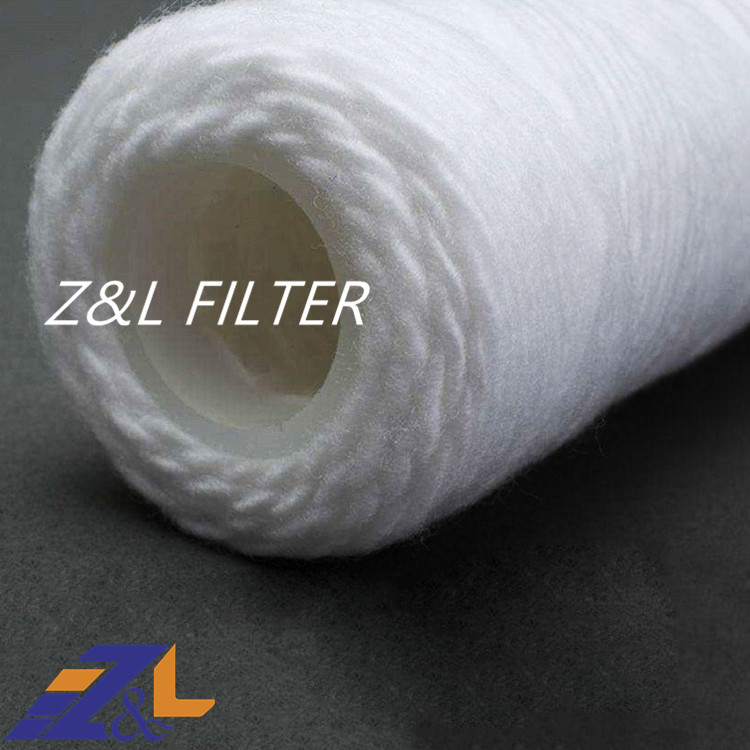

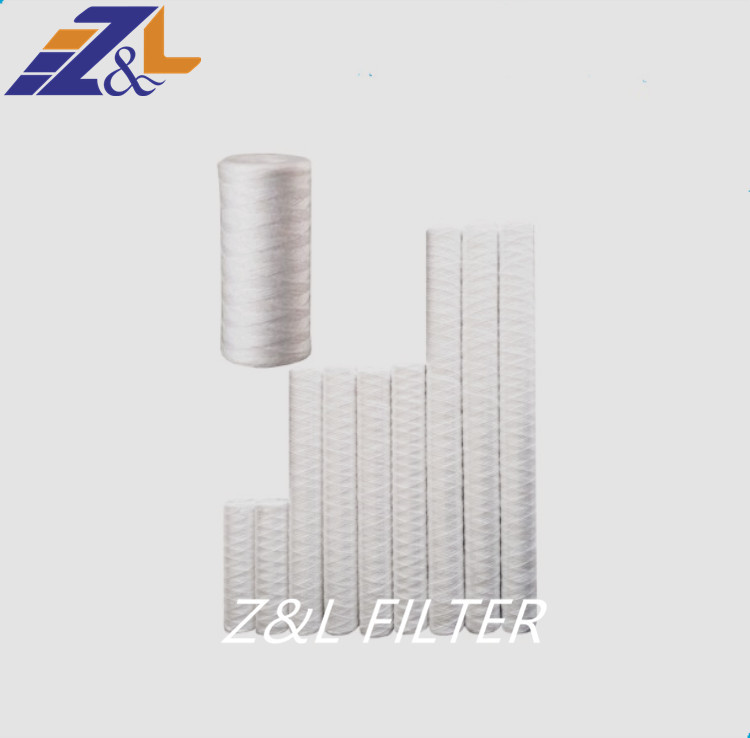

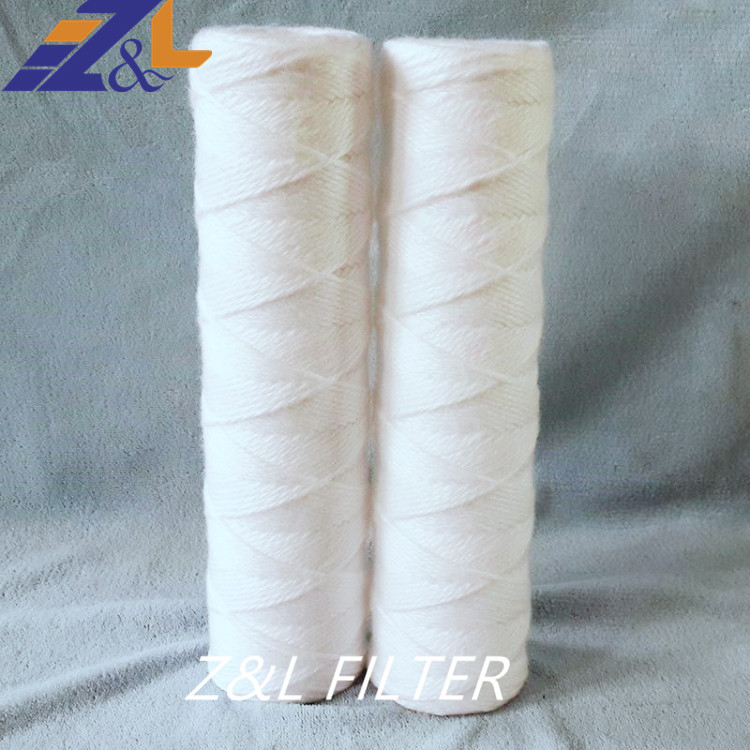

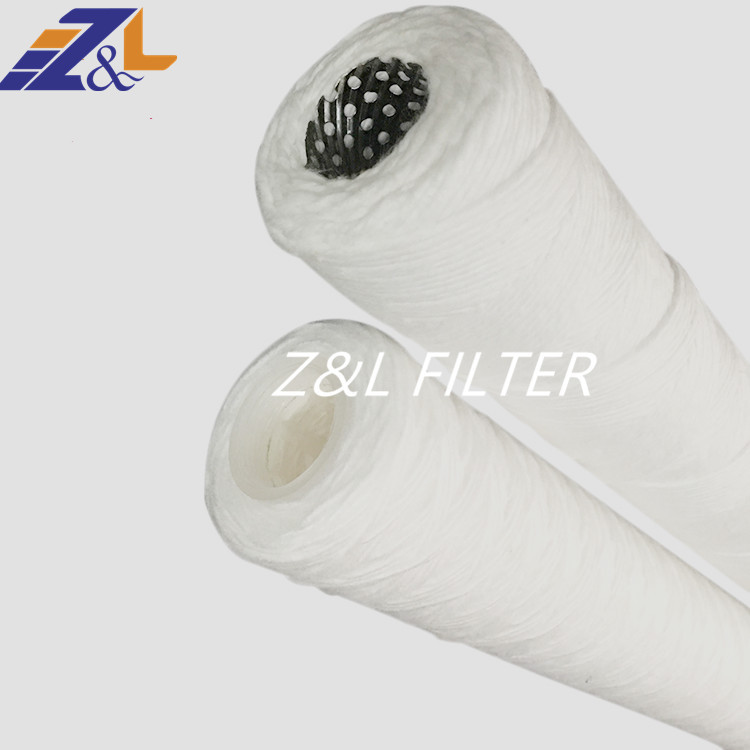

Detailed Filter Image:

Our Service

Core advantages: We can provide competitive products.
1. Stable quality.
2. Quality service.
3. Reasonable price.
4. Timely delivery.
Our advantage 1. We are manufacture with many years of export experience, good quality and low price.
2. Products are sold to many countries in the world.
3. Custom sample processing, one-on-one service for engineers.
4. Short delivery time, free samples and OEM ODM service.
5.24 hour customer service online service.
OEM  ODM: We can make filters according to your requirements. Please tell me the photo and size. OEM and ODM are welcome!
Please let us know the following information:
1.Photo.
2.ID, OD, height.
3. Filter material accuracy, filter media.
4. The form of the end cap.
QA: 1. High quality raw materials and advanced technology.
2. Our products are produced in strict accordance with the requirements.
3. High efficiency and high precision to ensure equipment safety.
4. If you have any questions, please feel free to give us feedback and we will promptly make corrections free of charge to ensure that the same problem will not occur again.
