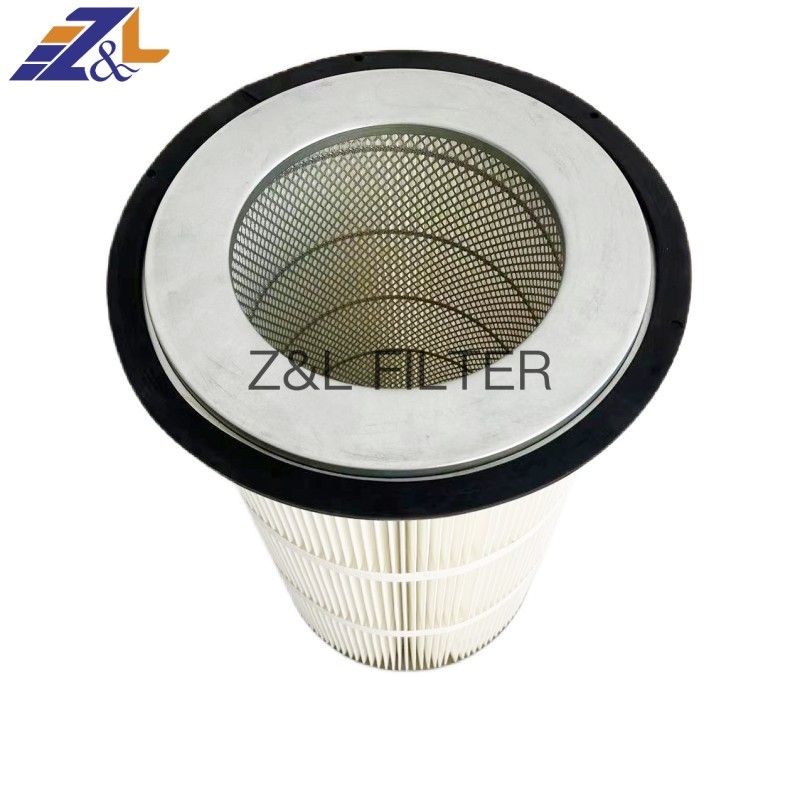

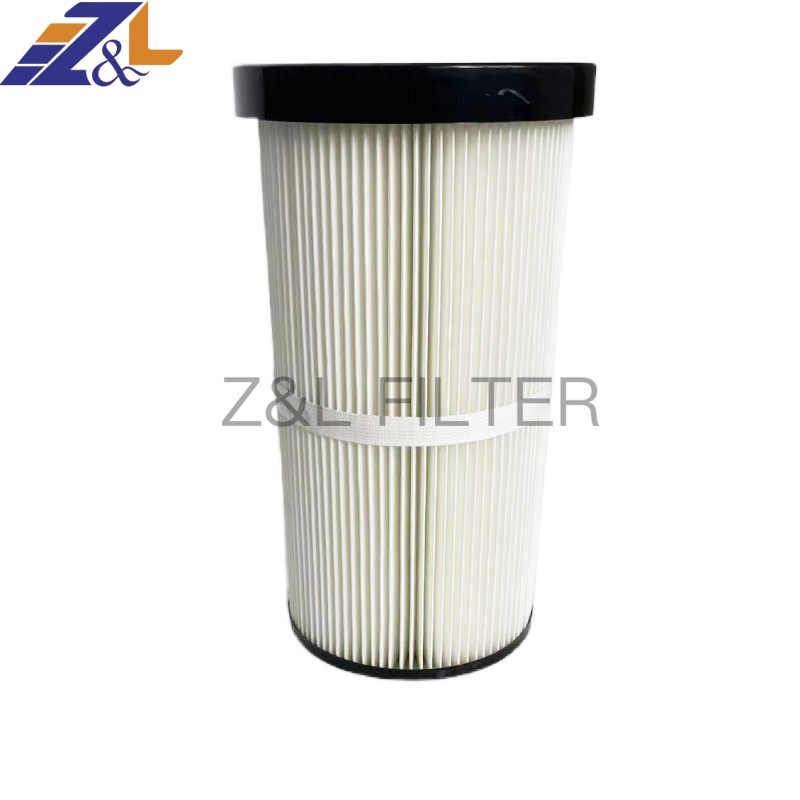

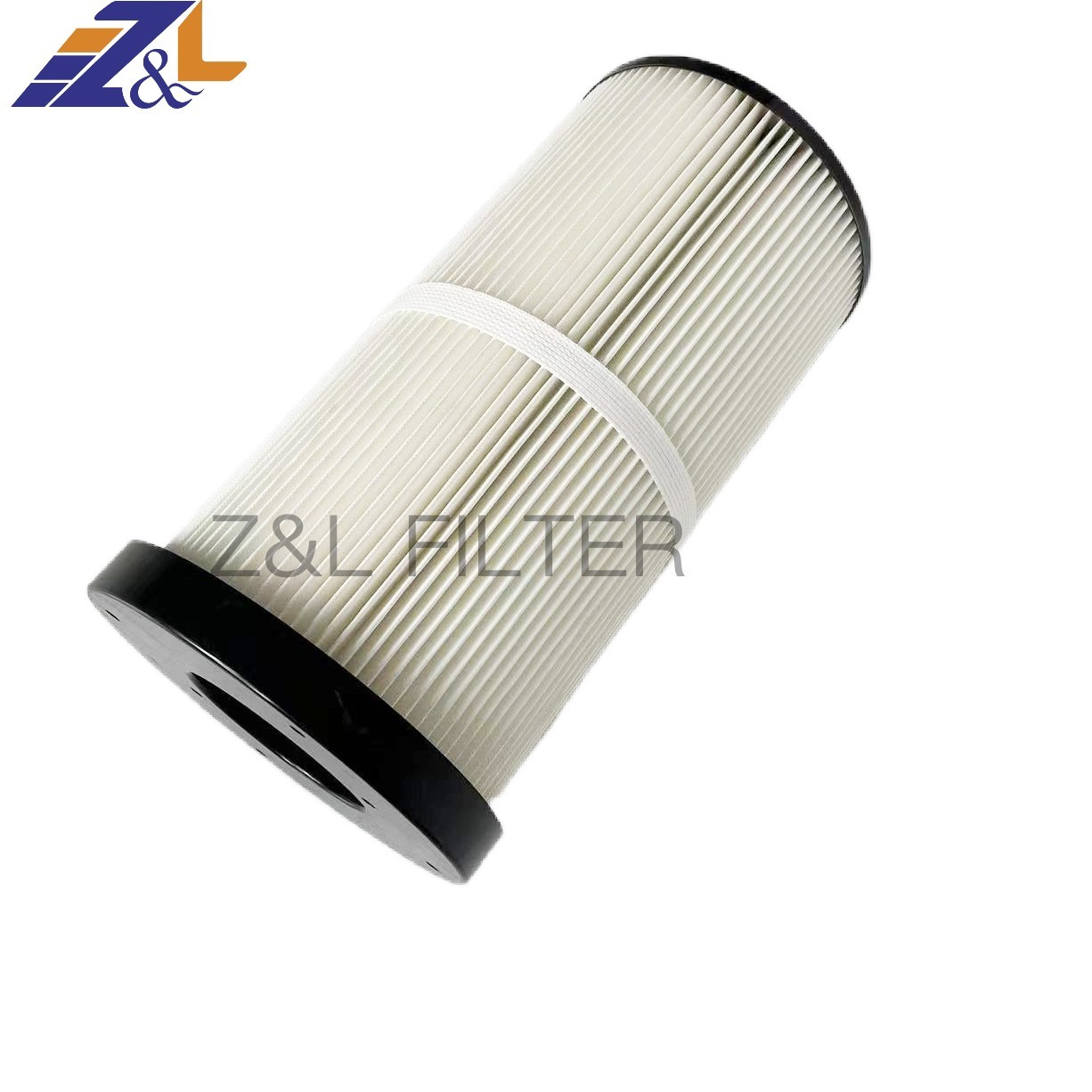

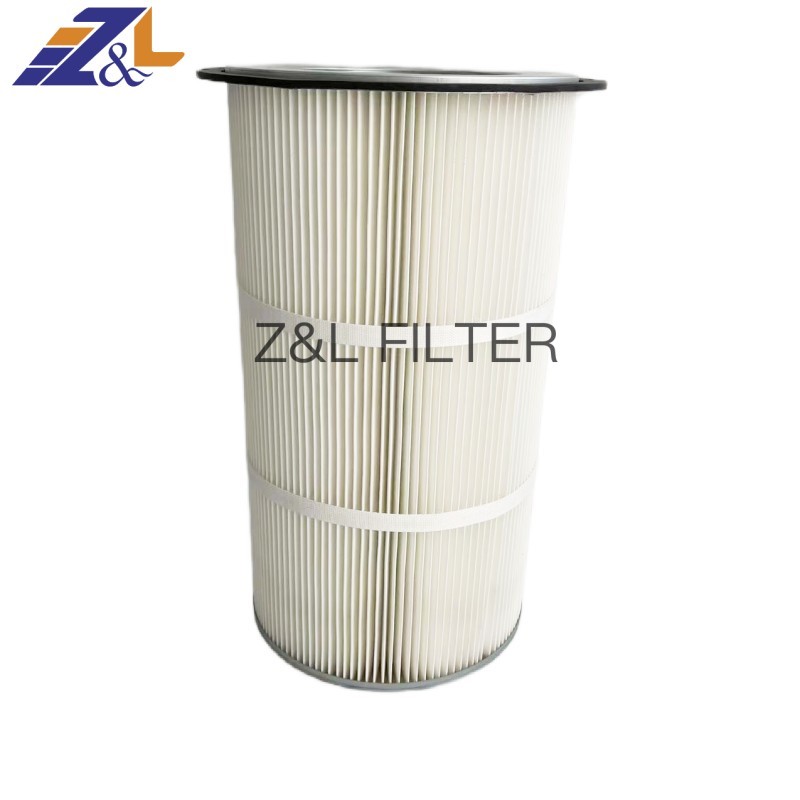

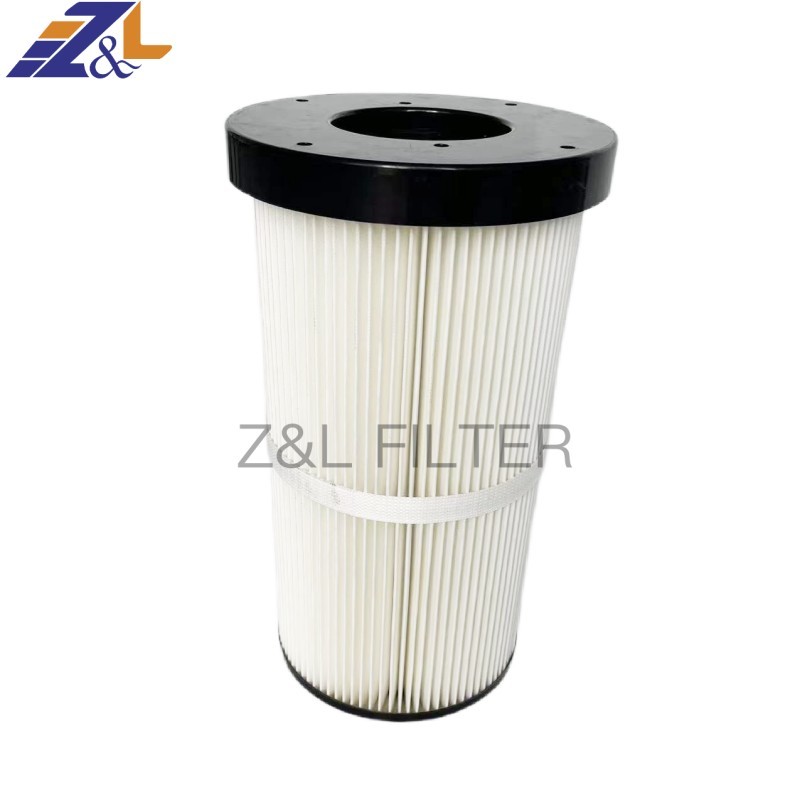

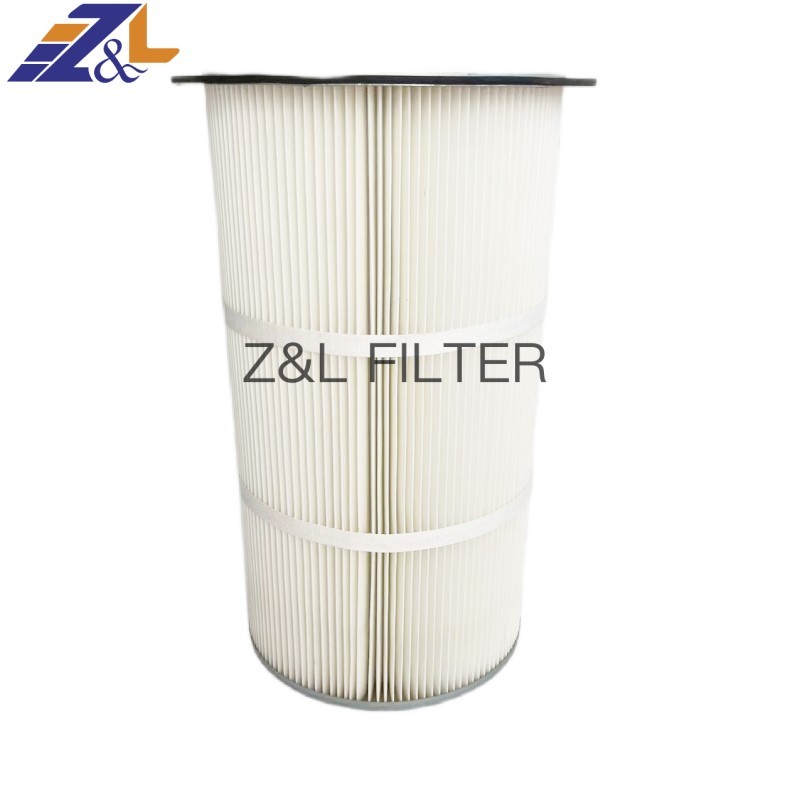

Z&L FILTER PTFE ,polyester pleated dust collector air filter cartridge

Item No.: 330*660-zl
INQUIRY
Description

Z&L FILTER PTFE ,polyester  pleated dust collector air filter cartridge

Product Ability
Element series: DUST SERIES
Condition: New
Applicable Industries: hydraulic oil filtrationcoal milling machinery
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: air filter cartridge
Application: filtration
Filter Material: PTFE , steel support ,ss caps/bottoms
Filtration micron: 10 micron
Filtration efficiency : 98%
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns


Product Parameters
filter  advantanges (1) suitable for welding lampblack, mechanical processing, pharmaceutical, casting, steel and other industries of very fine dust
filtration and sticky dust collection.
(2) Spunbonded polyester and PTFE membrane, microspore filtration efficiency 99.99%.
(3) Wide fold spacing and smooth, hydrophobic PTFE provide excellent particle release.
(4) excellent chemical corrosion resistance.
(5) Electrochemical plate/stainless steel upper and lower, rust free perforated zinc galvanized metal core, good air flow.
filter material 1. Basic medium: spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
Maximum operating temperature :200/93
5. Wear Resistance: Very good
6. Chemical Tolerance: Excellent
filter compands 7. Optional flame retardant medium (FR): can be ordered
1. Gasket: rubber, with good absolute sealing performance, improve durability And the life.
2. Internal cage: galvanized steel to prevent corrosion.
3. Molded top: Available in a variety of styles and sizes to fit a wide range of tubesheet holes.
4. Molded bottom: helps to resist abrasive wear at the bottom of the component.
filter application 1. Description: Excellent handling performance for wet, hygroscopic or agglomerated dust.
2 markets: thermal spraying, welding, mining, chemical, metal polishing, medicine, cement, woodworking, etc.
Product image

Related Supplying

Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.
