Air Filter Cartridge
Home- Products - Air Filter Cartridge

Z&l filter supplying polyester dust collector air filter cartridge

Item No.: Z&L COLLECTOR2021-5461
INQUIRY
Description

Z&l filter supplying polyester dust collector air filter cartridge

Product Ability
Element series: dust series
Condition: New
Applicable Industries: dust collector, mental industry machinery
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: dust collector air filter
Application: filtration
Filter Material:polyester, steel support ,ss caps/bottoms
Filtration micron: 10 micron
Filtration efficiency : 98%
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 10 microns

Product parameters

dust collector air filter material 1)  Imported long fiber polyester filter media,fiber interwoven,evenly distributed.
2)  Filter material surface do waterproof and oil processing.
3)  Good abrasion resistance,and the capability of withstand airflow pulse inverse blow is better than traditional filter media.
4)  Smooth filter media surface,not sticky.
5)  Excellent chemical resistance.
6)  Good filter material stiffness,can be repeated washed.
optional filter media 1) Spunbonded polyester
2) Polyester +  Oil and water repellent
3) Polyester + PTFE Membrane (Coated by glue & Coated by heating)
4) Polyester + Anti-static (Aluminized antistatic & Polymer Antistatic )
5) Polyester + Flame retardant
6) Polyester + Dual anti-treatment (Anti-static+Flame retardant, Oil and water repellent+ Anti-static, PTFE Membrane+ Anti-static)
We will choose the most suitable filter media according to customers' requirement.
caps/bottoms hard eletro-galvanized steel /stainless steel
sealing gasket rubber ,
dust collector air filter parameters 1)  Operating temperature  135 ° C.
2) Greatly increase the effective filtration area.
3) Ensure a low steady differential pressure, improve the circulation of air flow.
4) Small filter cartridge element, easy to install.
5) Especially suitable for large dust concentration industry.

Z&l filter supplying polyester dust collector air filter cartridge
Product Advantages
(1)suitable for welding lampblack, mechanical processing, pharmaceutical, casting, steel and other industries of very fine dust
filtration and sticky dust collection.
(2) Spunbonded polyester and PTFE membrane, microspore filtration efficiency 99.99%.
(3) Wide fold spacing and smooth, hydrophobic PTFE provide excellent particle release.
(4) excellent chemical corrosion resistance.
(5) Electrochemical plate/stainless steel upper and lower, rust free perforated zinc galvanized metal core, good air flow.

 Product application
1. Description: Excellent handling performance for wet, hygroscopic or agglomerated dust.
2 markets: thermal spraying, welding, mining, chemical, metal polishing, medicine, cement, woodworking, etc.
3. Types of dust: polishing dust, metal dust, metallurgical powder, etc.

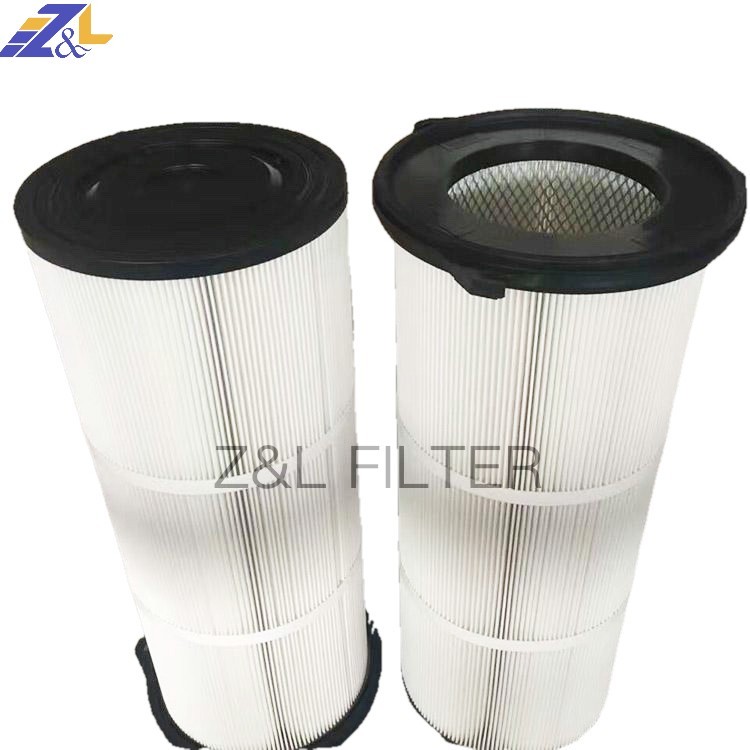

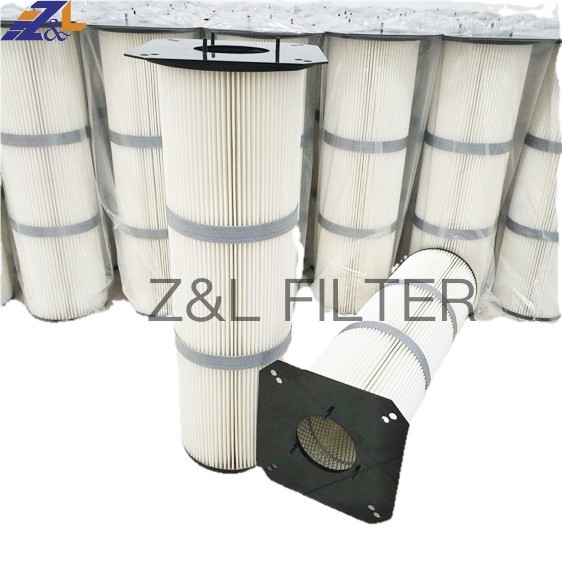

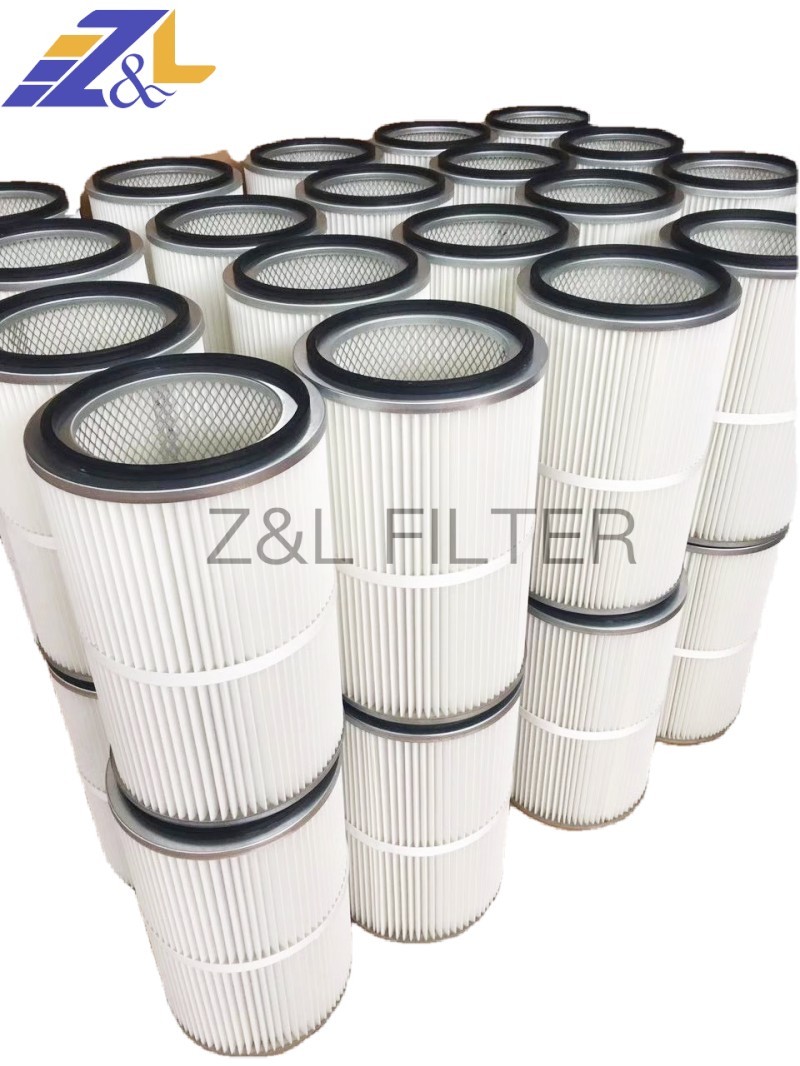

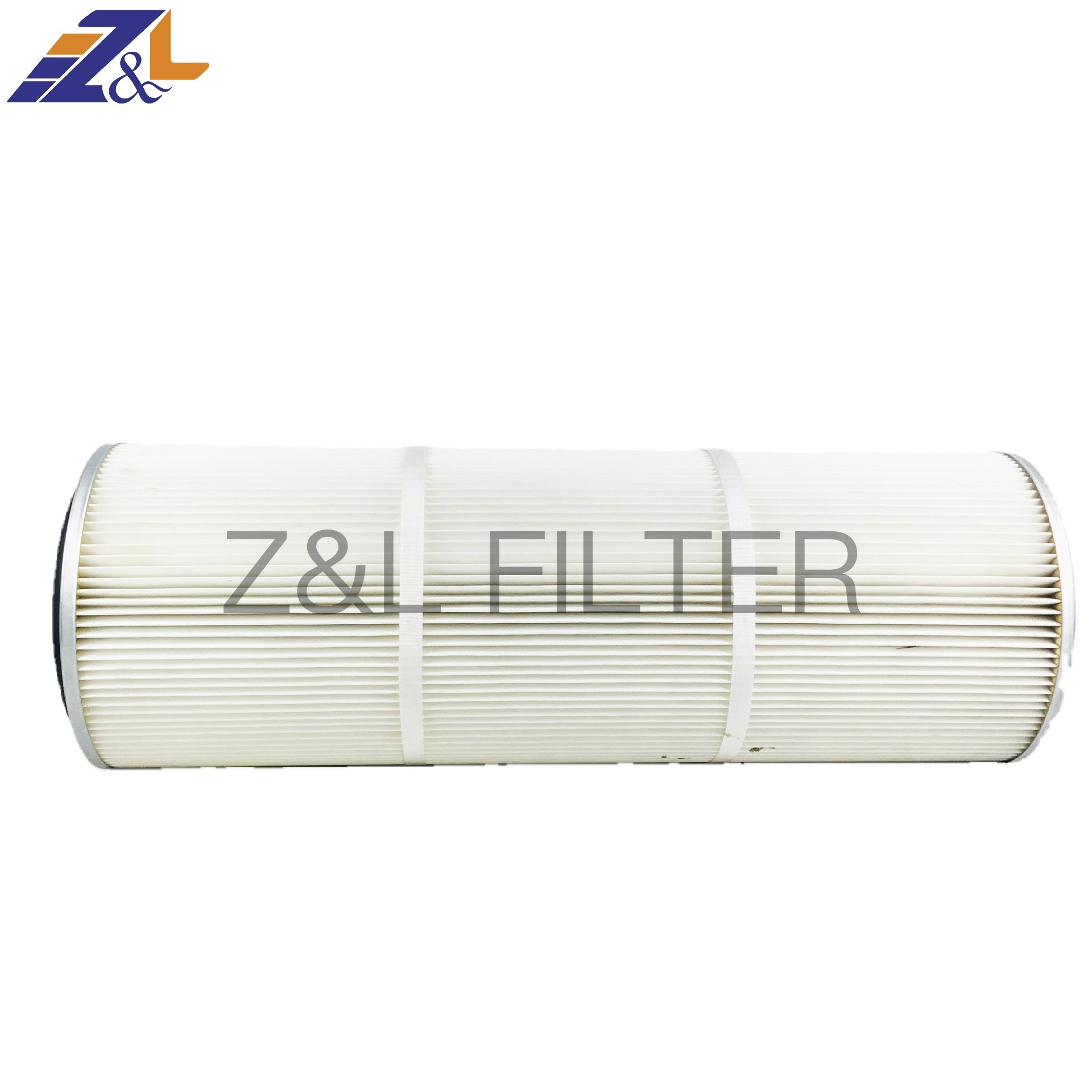

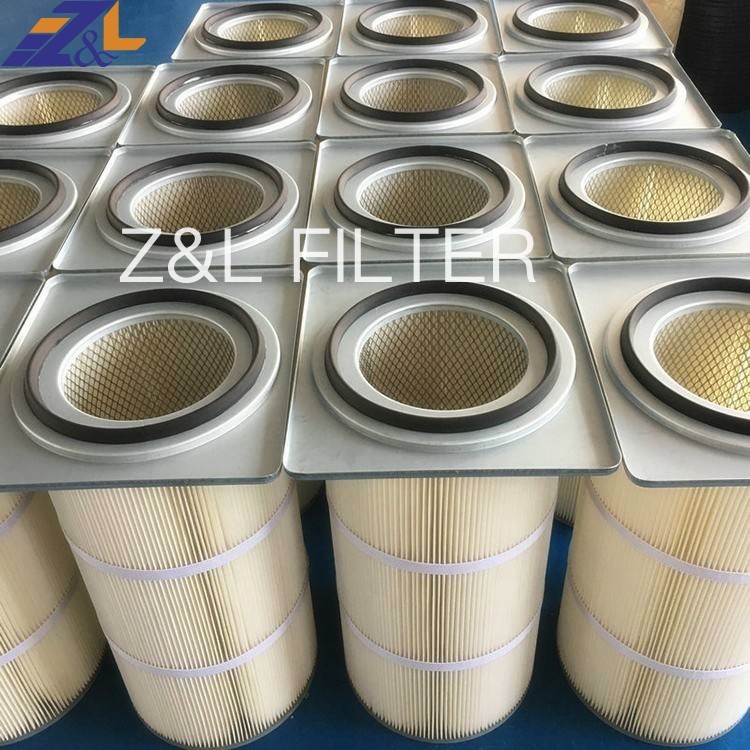

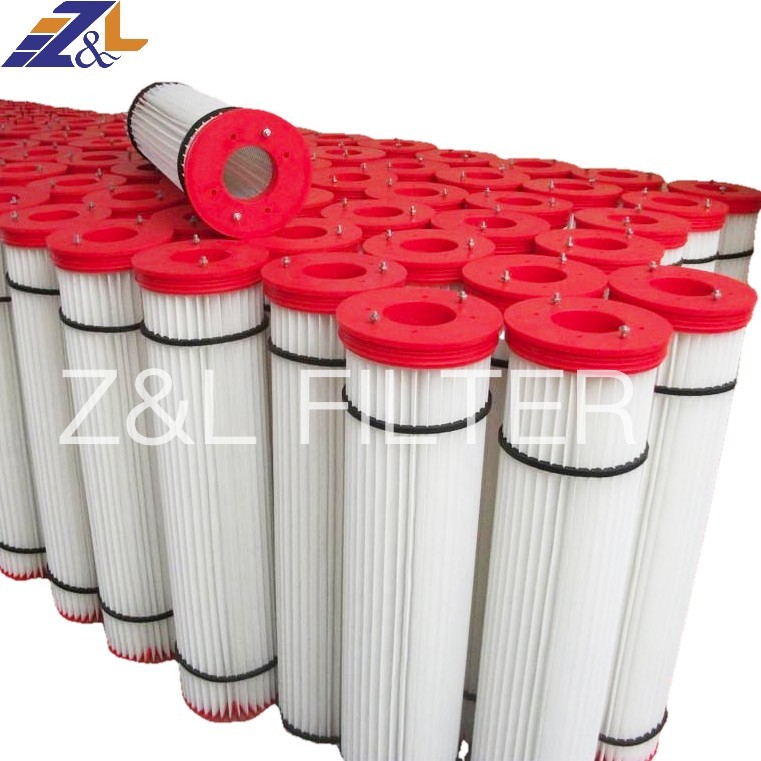

Product image:
