Chinese z&l Factory supply micro porous filter tube PTFE PE PA PP sintered filter 5 micron oil filter for natural gas filtration oil

Desciption

Quick Details
Applicable Industries:Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Place of Origin:Hebei .china
Brand Name:Z&L filter
Product name:PP micro oil filter cartridge
Filtration efficiency : 0.2um,0.3um,0.45um,1um,3um,5um,10um,20um,30um,40um,50um,100um,etc.
, customized
Material:PE/PTFE/PA/PP
End cap:SOE/DOE
Working temperature: PE≤80℃; PTFE≥200℃;PA≤120℃
Filter coonector:Flat type ,insert series,THREAD TYPE,226,222,215
Diamater :10mm,20mm,30mm,50mm,110mm,120mm, 200mm, customized
Length: 1", 2.5", 5", 10" ,20" ,30" ,40", 50" etc
Surface:Smooth/Pleated
Filter media:Polyethylene

Chinese factory customized size microns porous plastic element filter thread connection pe sintered pipe filter /board filter

Product introduction

Z&l filter manufactures the ultra-high molecular polyethylene sintered filter, molecular weight is more than 3 million of sintering particles. Use a mould to use the pressure in the sintering furnace. Microporous materials are widely applied for treatment of waste gas and waste water because of their good price ratio. By adding functional materials of various kinds, active carbon for example, to conventional plastic raw materials, we can effectively remove substances harmful to the environment in gases and liquids, such as peculiar smell and organic matters etc. Potassium titanate whiskers, for example, can exchange the heavy metal ions contained in waste water, thus they have excellent performance in sewage treatment.

Product Advantage

High porosity to ensure a greater flow per unit area;

Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;

Anti-fouling ability: the small size of the filter so that impurities can't be retained in the filter body;

Resistance to strong acid, alkali corrosion, resistance to organic solvents;

Excellent mechanical properties;

No particle release.

Wide Product range and wide scope of application

Product Parameters

Filtration Material	PE, HDPE, PTFE, PVDF, PA/Nylon etc
Filtation micro:	0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Related dimension list (mm)	31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type list	DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature	PE≤82℃; PTFE≥200℃; PA≤120℃

Product performance

filter material	Polymer PE
Machinery operation method	turning, sawing, filing, planing, ironing and welding.
filtration efficiency	we could customize as your requriements
installation standard	light weight results easier operation
Chemical media applicable	acid, alkali, oil, salt resistance (resistance to most organic solutions such as esters, ketones, ethers, aldehydes, etc., temperature 70°C)
Applicable Temprature rate	PE microporous filter tube temperature resistance≤80°C, PA microporous filter tube temperature resistance≤100°C
Product related stress	Tensile strength: 4Mpa, bending strength: 5Mpa, impact strength: 4.5Mpa, Super impact strength,
product advantage	The regeneration effect is obvious, to achieve longer service life ,better filtratioon effect
Application industry	Non-toxic and odorless, after preliminary identification by relevant departments, it is used in the pharmaceutical and food industries without dameges on human health.

Related reference diameter list
<1>Stacked filter plate /hollow filter plate/micron PP filter board specification list

Product introduction	OD	Inner hole	thickness	Filter area	Filtering method	Operating temperature	Applicable pressure	Blowback pressure	Filtration accuracy
PP filter plate	Φ220	45	15	0.0759	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ290	50	20	0.132	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ340	50	20	0.1814	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ390	56	20	0.2387	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ490	69	20	0.3769	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ600	69	30	0.5652	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ800	86	30	1.0048	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ1000	106	30	1.57	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ1200	130	30	2.2608	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ1400	155	30	3.0772	External To internal	80-100	0.2	0.4-0.6	0.35-100
PP filter plate	Φ1600	155	30	4.0192	External To internal	80-100	0.2	0.4-0.6	0.35-100

<2>Micro hole tube/pipe/cartridge specification

Microporous filter tube	PE / PA	31×15	1500	0.097/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	31×20	1500	0.097/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	38×15	3000	0.119/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	38×20	3000	0.119/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	48×20	2000	0.150/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	48×32	2000	0.150/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	65×32	2000	0.204/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	65×44	2000	0.204/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	80×32	1000	0.251/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	80×44	1000	0.251/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	95×44	1000	0.298/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	95×72	1000	0.298/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	120×100	1000	0.376/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	150×112	1000	0.471/m	80-100	0.2	0.4-0.6	0.35-100	External to internal
Microporous filter tube	PE / PA	205×160	1000	0.643/m	80-100	0.2	0.4-0.6	0.35-100	External to internal

Detailed Image for Product:

Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.

After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
can support a claim for compensation.

Some scens taken from factory:

Our clients around the Global

If any inquiry ,just contact us :

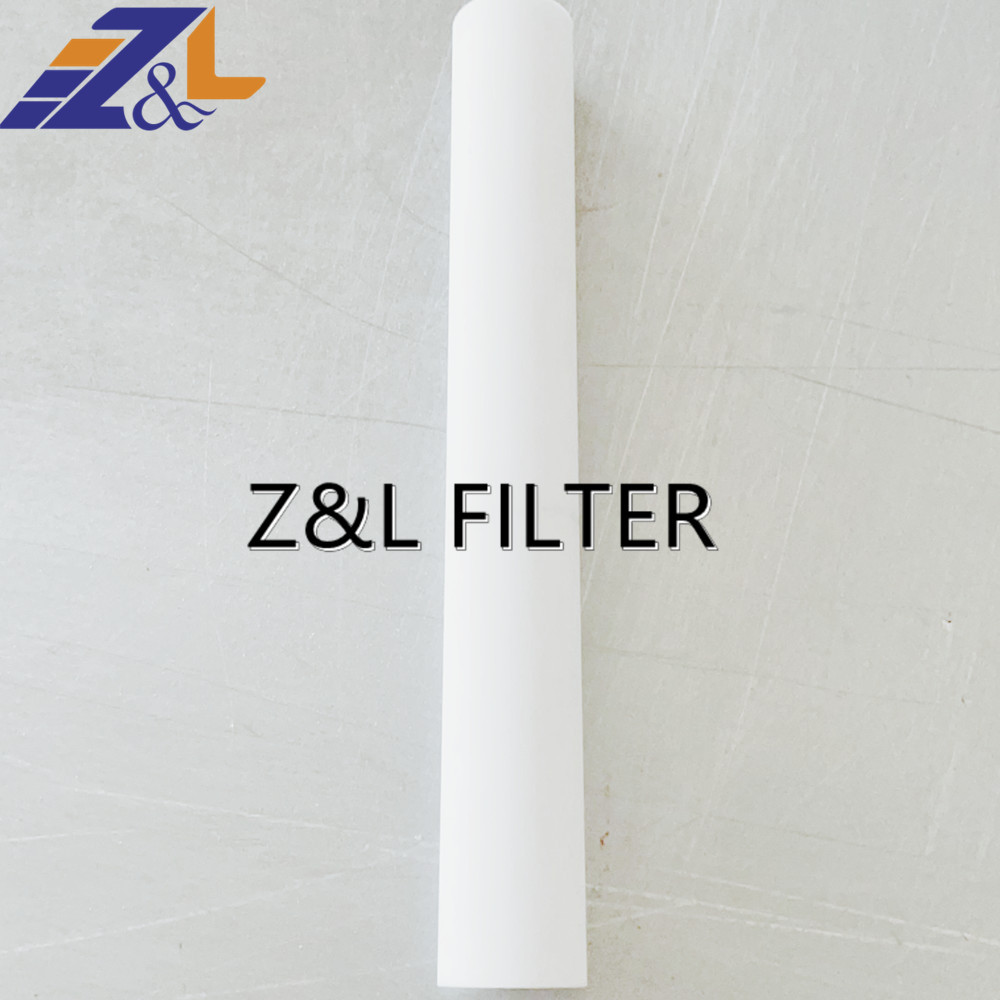

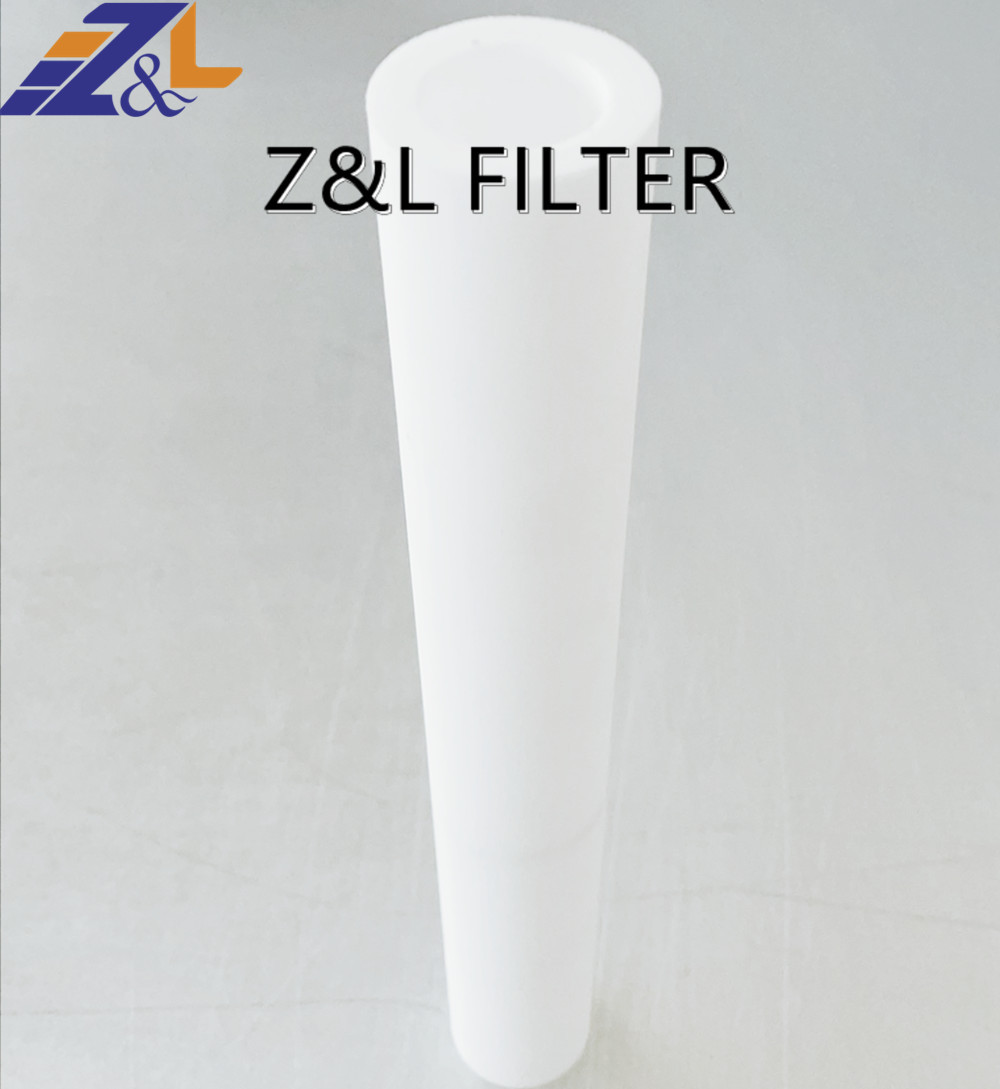

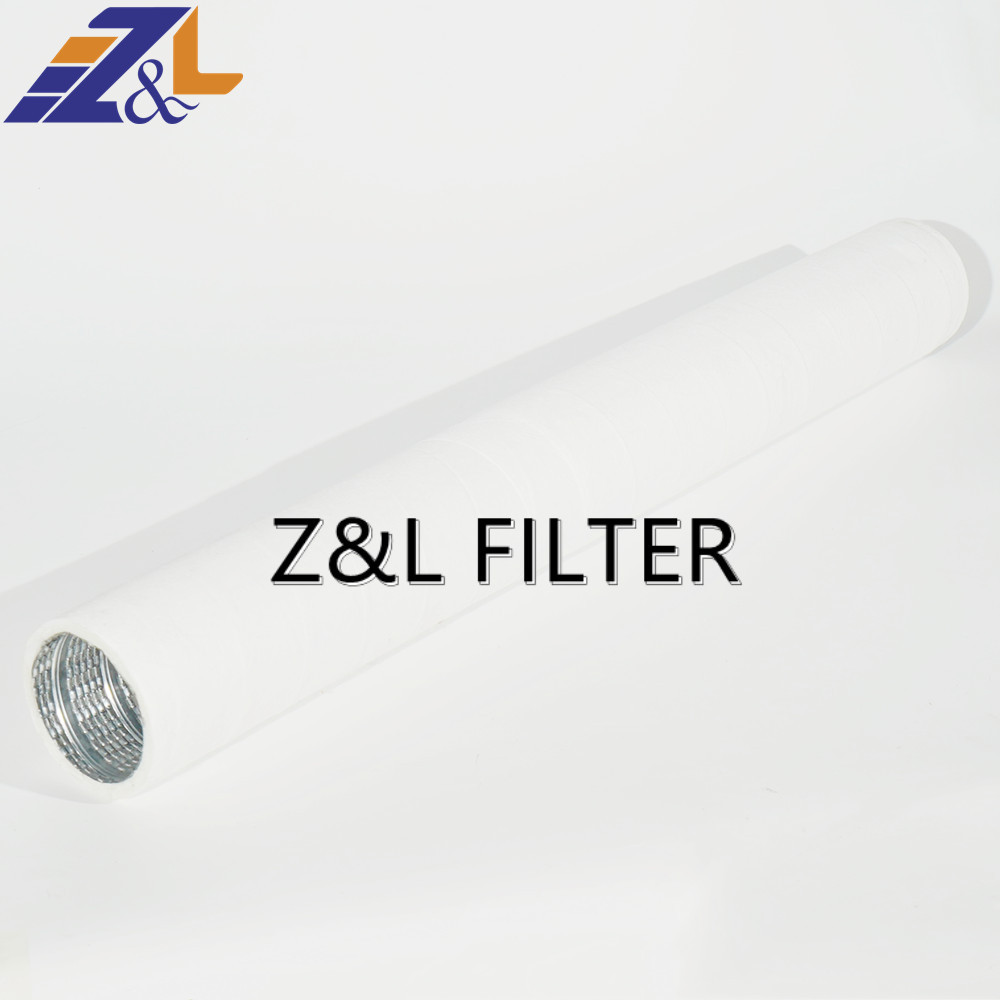

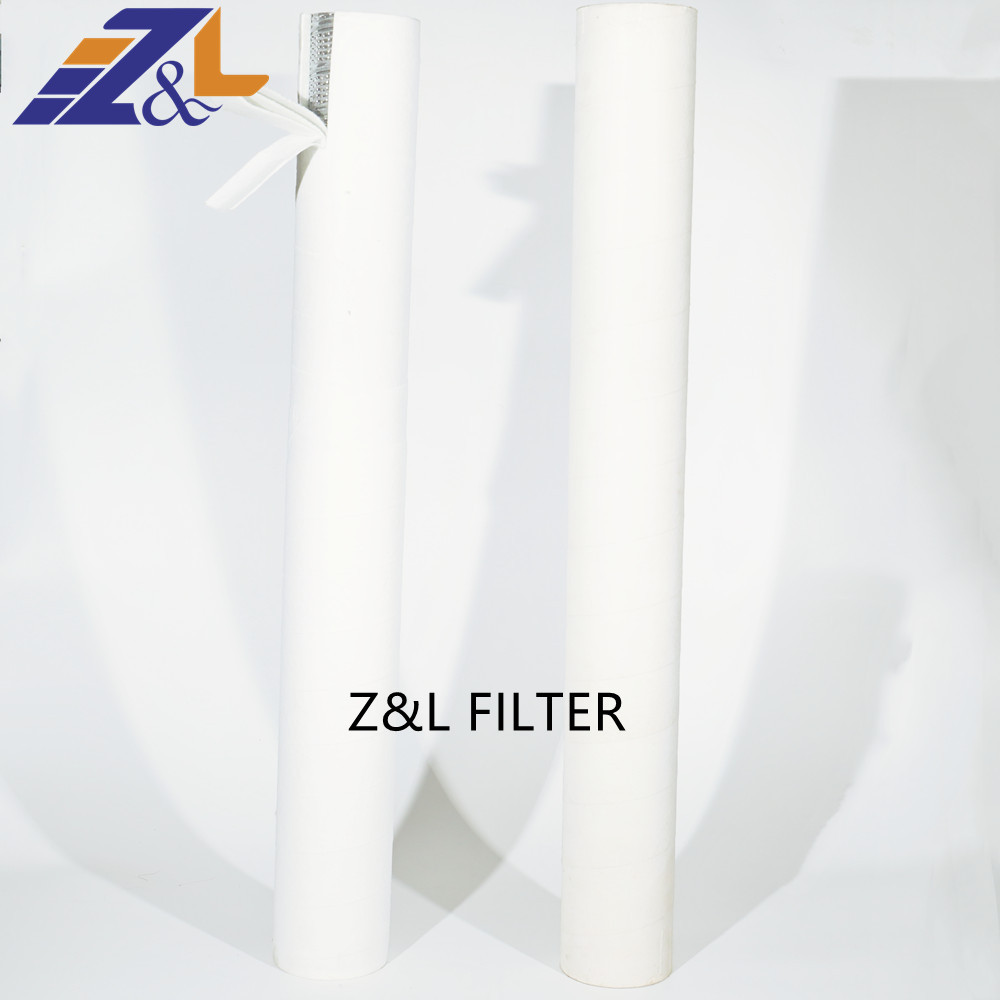

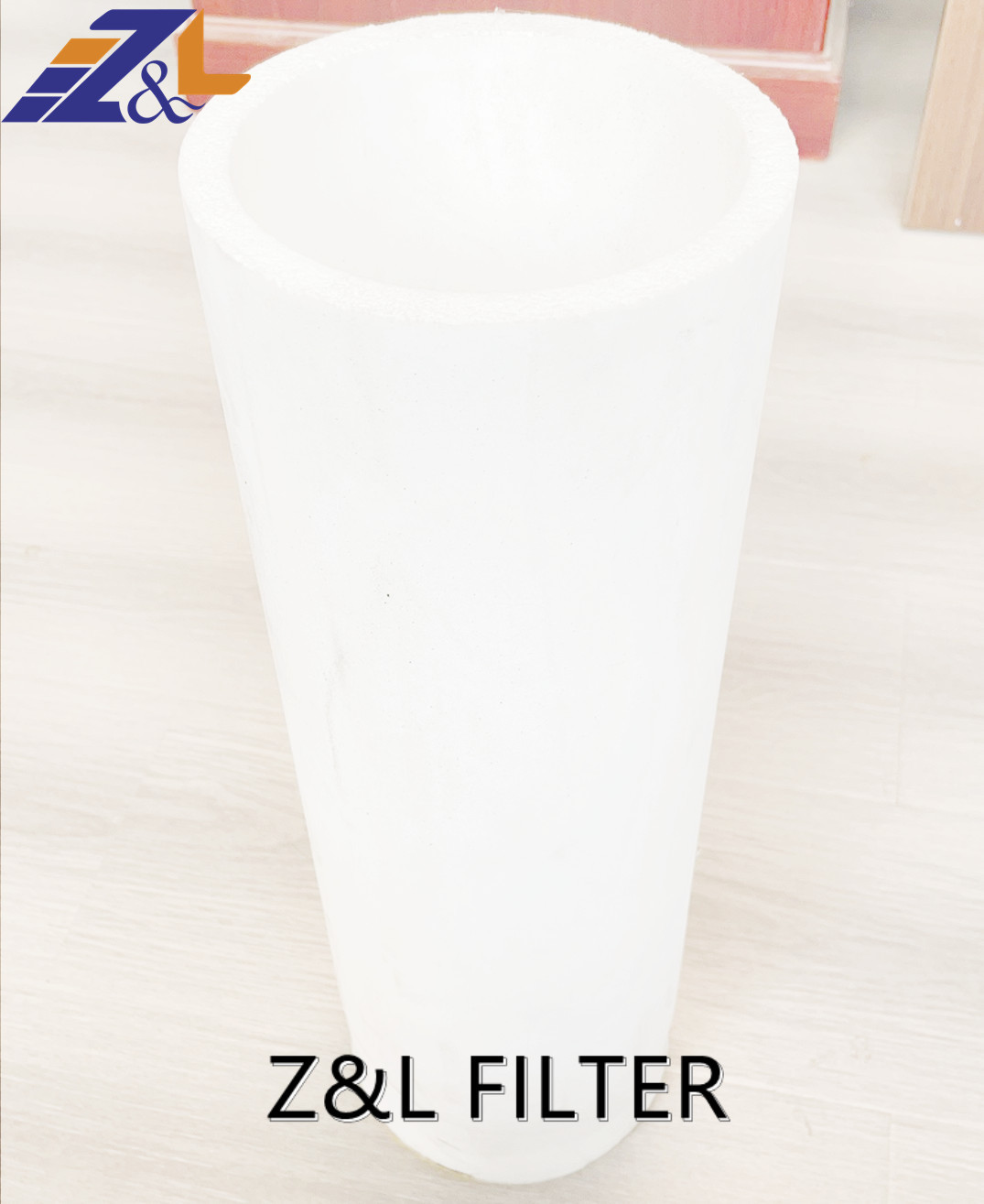

Micro porous PE filter
