Desciption

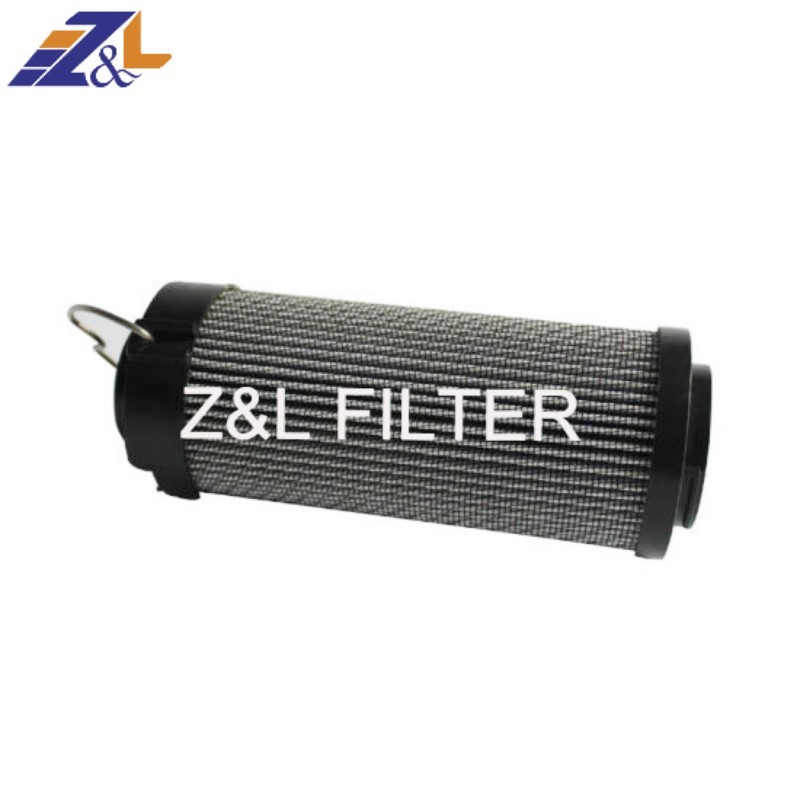

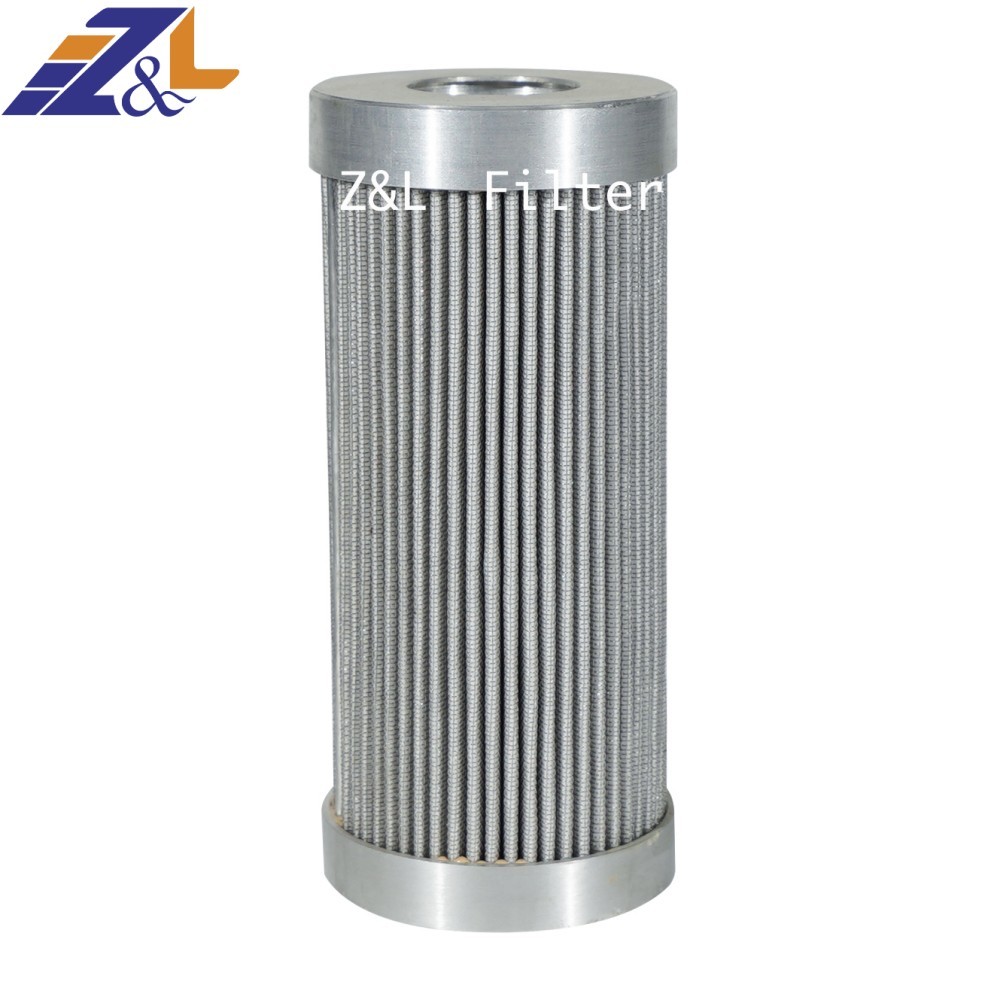

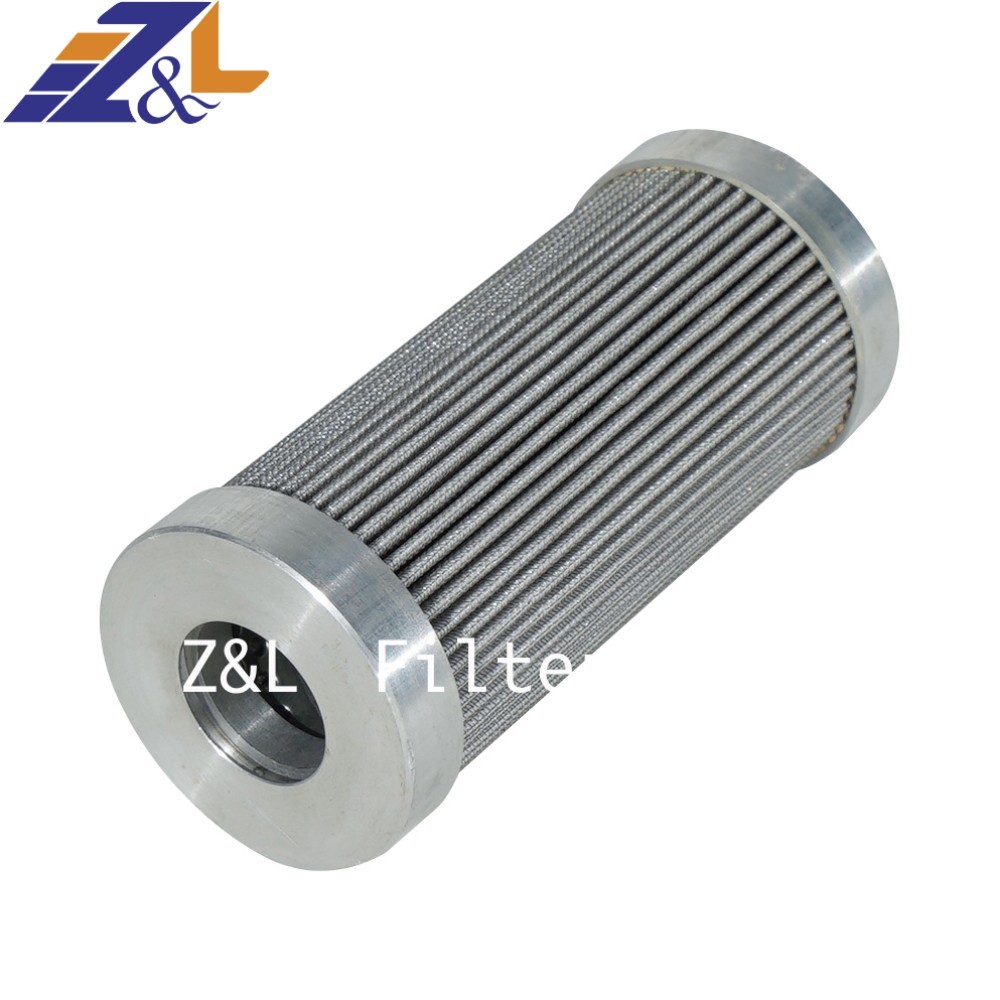

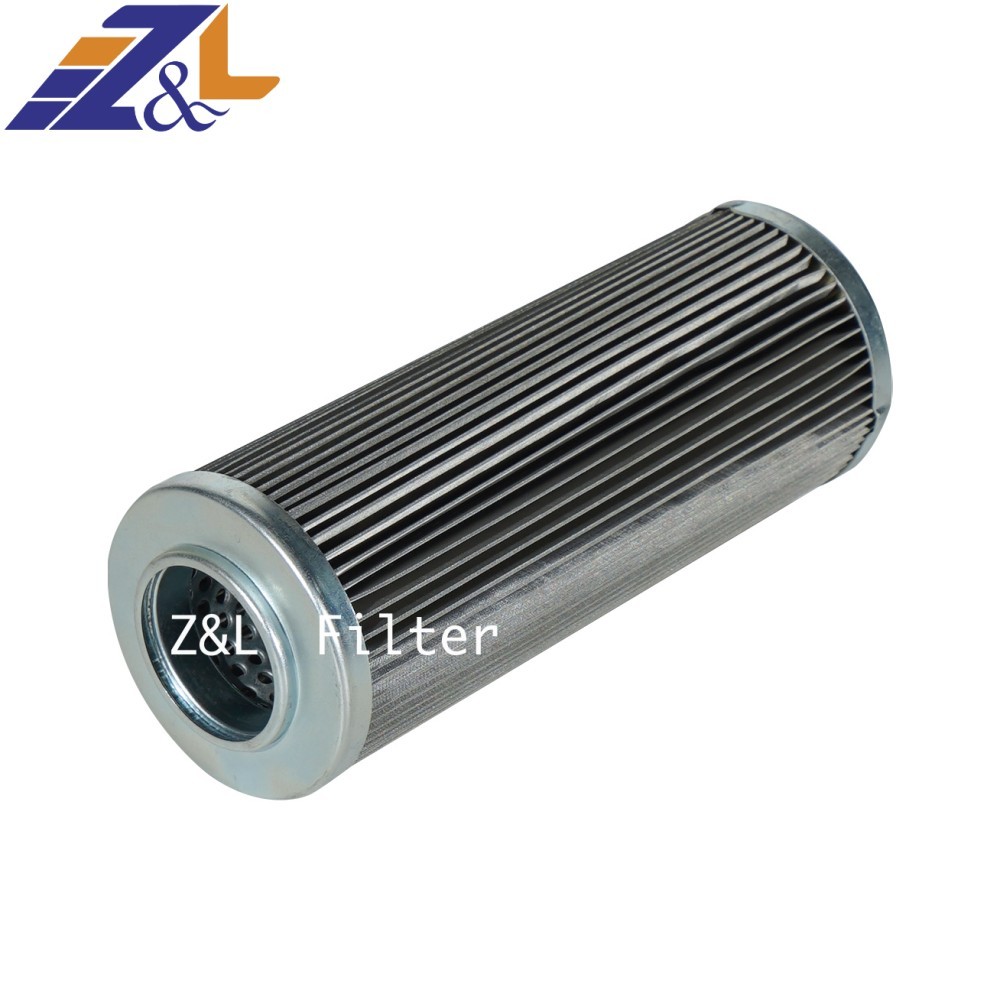

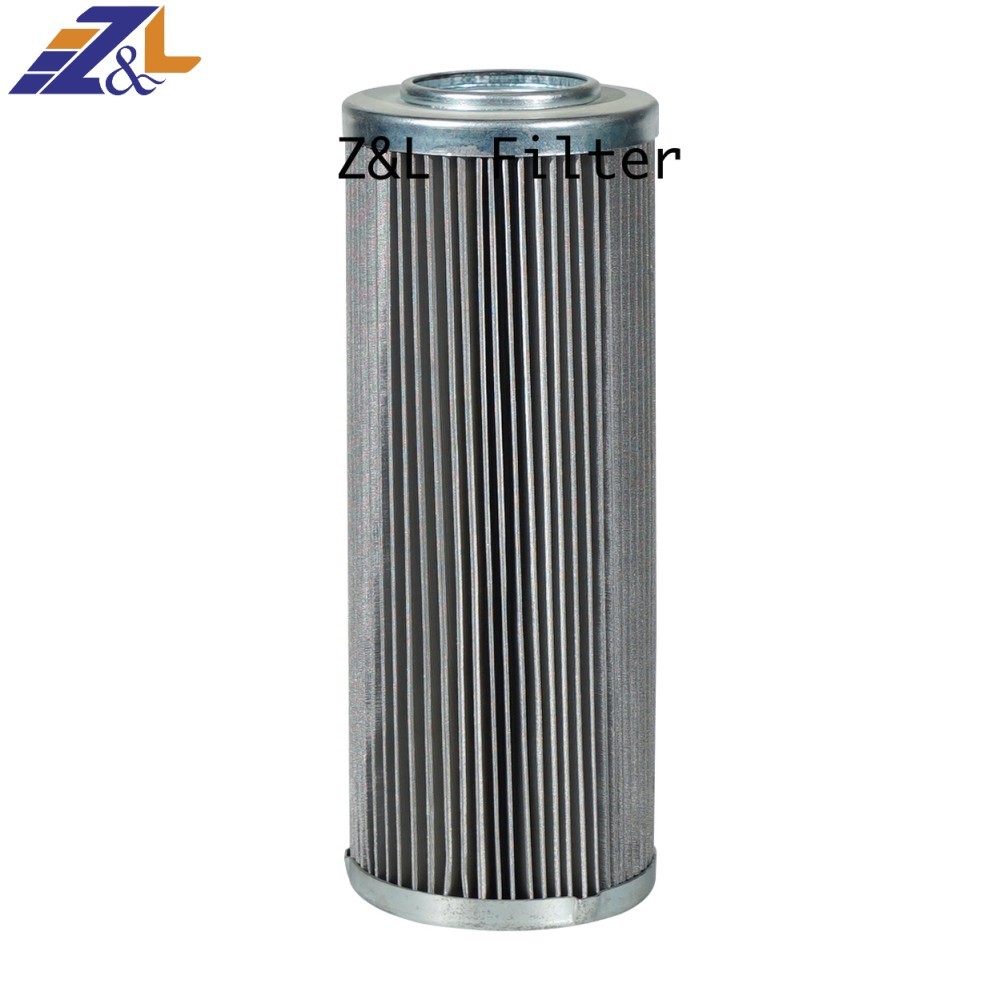

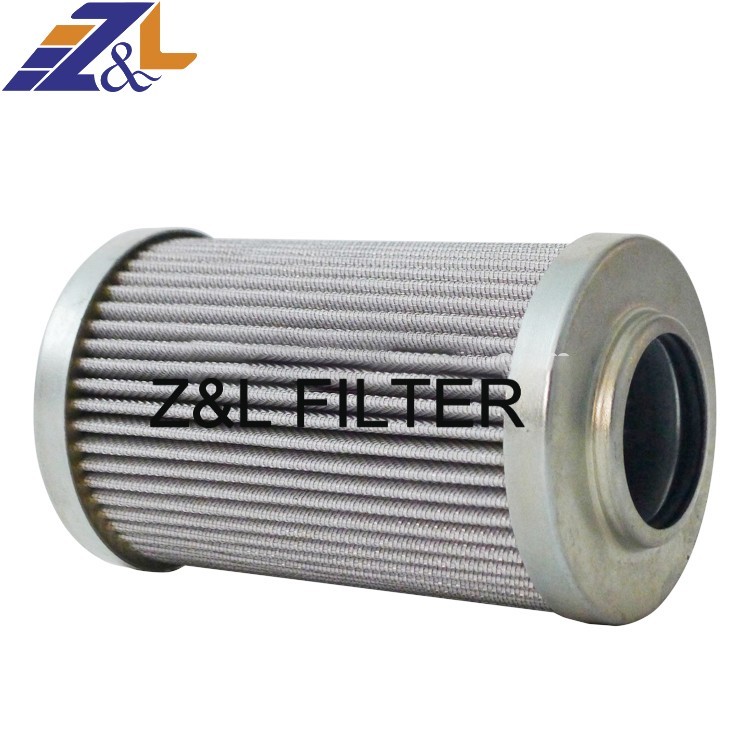

Z&l filter Chinese factory supply oil filter cartridge hydraulic filter HC2206FUT6Z
Product Ability
Element series: hc2206 series
Condition: New
Applicable Industries: hydraulic oil filtrationcoal milling machinery
Place of Origin: Hebei, China
Brand Name: Z&L FILTER
Product name: hydraulic oil filter cartridge
Application: filtration
Filter Material: glass fiber , steel support ,ss caps/bottoms
Filtration micron: 25micron
Filtration efficiency : 98%
Height: 6 in
Outer diameter: 1.9in
Working pressure (PSI) : 305
Low operating temperature (F) : -13
High operating temperature (F) : 248
Flow: from outside to inside
Material of gasket: nitrile rubber
Fluid type: HH/ HL/ HM/ HV/ HFD
Accuracy: 25 microns
Product parameters

Produce Name hydraulic lube and oil filter cartridge
certification ISO9001
Filter material plastic caps and bottoms .ss mesh support.rubber ,glass fiber
Place of origin CHINA
OEM NO. HC2206FUT6Z
Brand name z&l filter
Fits The filtration effect and the service life of the post-filter element are greatly increased by adopting the perfect manufacturing technology of tapering wire winding structure.
Primary Filter Media Source Hv filter or Chinese glassfiber
dimensions Height:6 in
OD Top: 1.9in
ID_Bottom: 1.2in
Operating Efficiency OE HD 97% Initial Eff. on 25 micron

Z&l filter Chinese factory supply oil filter cartridge hydraulic filter HC2206FUT6Z
 Product introduction
Z&L Filter produces HC2206FUT6Z hydraulic oil filter products, the filter material is divided into domestic filter material and imported filter material, glass fiber filter paper adopts experimental grade high-quality filter paper, filter core support frame end cover are thickened and the surface after special chemical treatment, chemical stability bearing capacity is greatly improved

Product related series

HC2207FCP3Z HC2207FCN3H HC2206FKS3H
HC2207FCP6Z HC2207FCS8H HC2206FUS6Z
HC2207FCS6H HC2207FCP6H HC2206FUS6Z
HC2207FCT3H HC2207FCN6H HC2206FUT6Z
HC2207FCT6Z HC2207FCP8H HC2206FKP6H
HC2207FCP3H HC2207FCS6Z HC2206FUT3H
HC2207FCS3H HC2207FDP6H HC2206FKN6H
HC2207FCT6H HC2207FCN8H HC2206FKN6Z
HC2207FCT3Z HC2206FUS6H HC2206FUT6Z


Related Supplying:
Hydraulic oil filters
Dseries:0030D series、 0035D series、 0055Dseries、0060Dseries、0075Dseries、0095Dseries、0110Dseries、0140Dseries、0160Dseries、0240Dseries、0280Dseries、0330Dseries、0500Dseries、0660Dseries、0990Dseries、
RNseries:0040RNseries 、0063RNseries、0100RNseries、0160RNseries、0250RNseries、0400RNseries、0630R Nseries、0400DNseries
R series:0030Rseries、0060Rseries、0110Rseries、0160Rseries、0240Rseries、0330Rseries、0660Rseries、0850Rseries、0950Rseries、1300Rseries、1320Rseries、1700Rseries、26007Rseries
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters

Thermal power and nuclear power: steam turbine, boiler lubrication system, speed control system, fan and dust removal system purification.
Machinery processing equipment: paper machinery, mining machinery and large precision machinery system of medium purification
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.
