Desciption

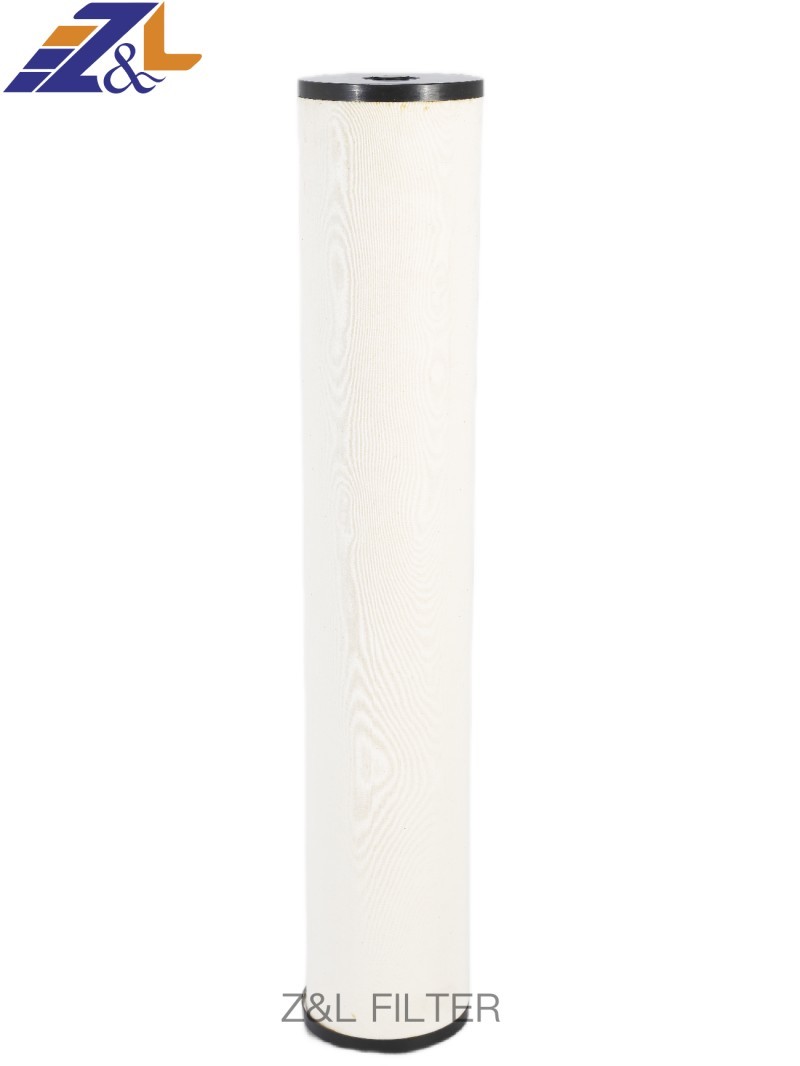

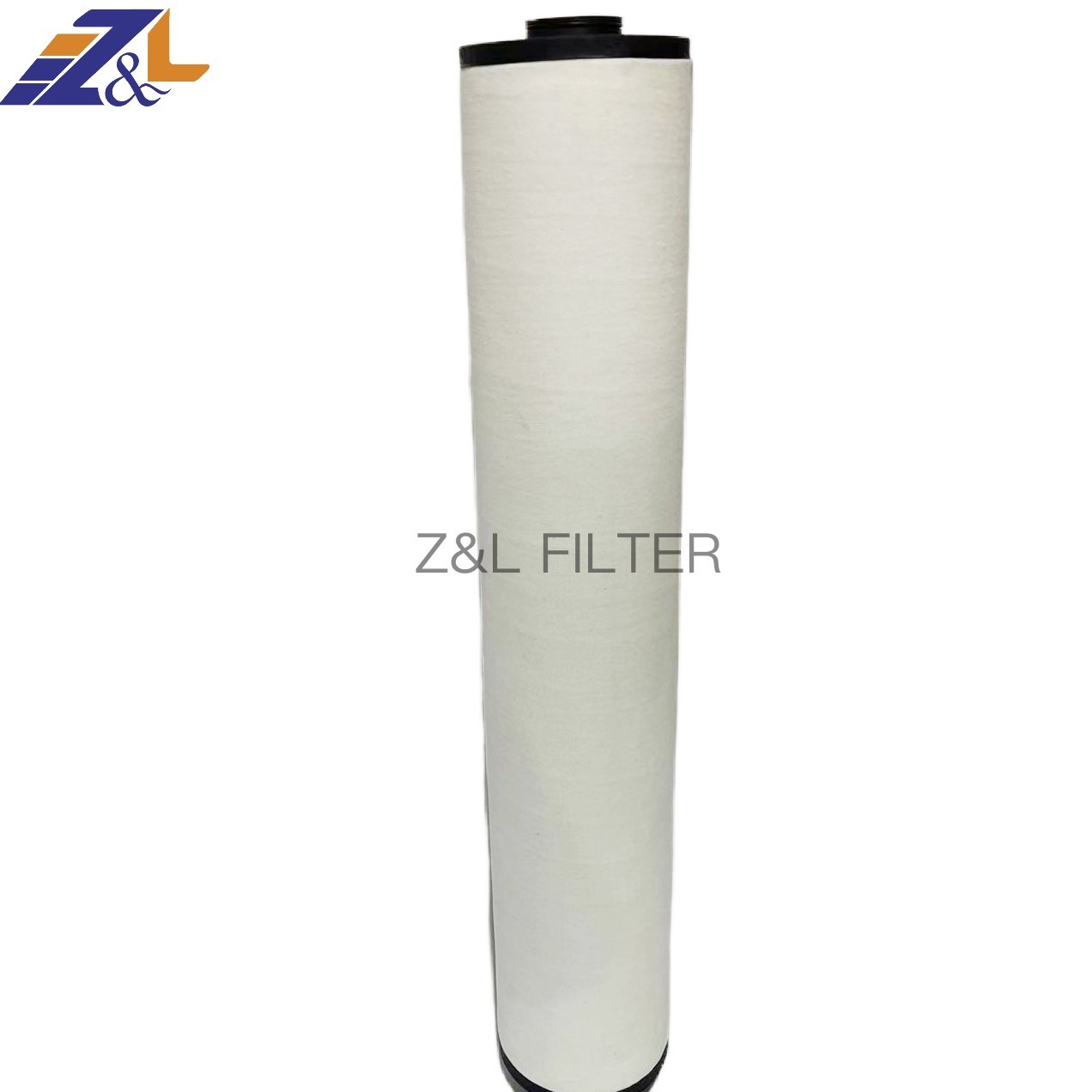

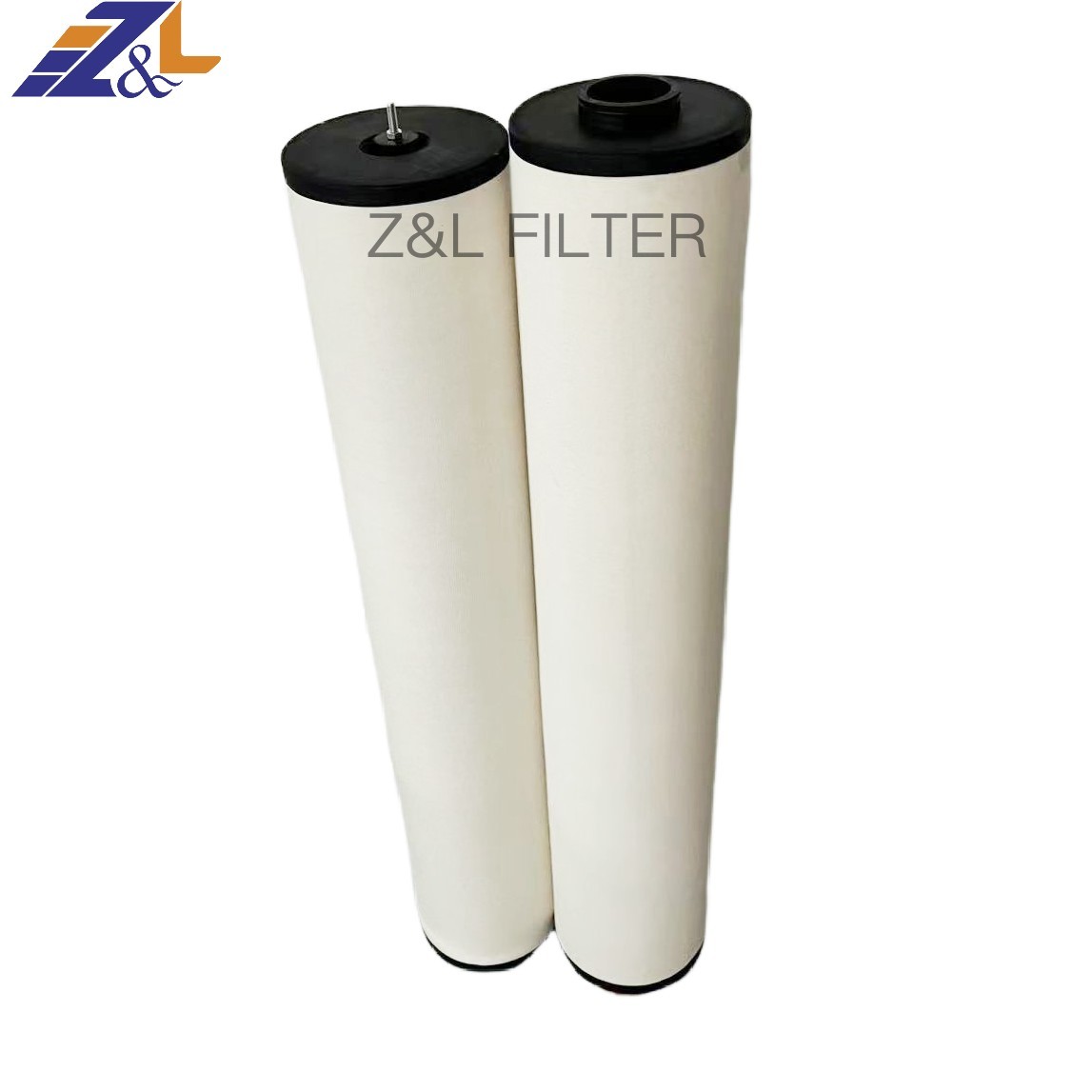

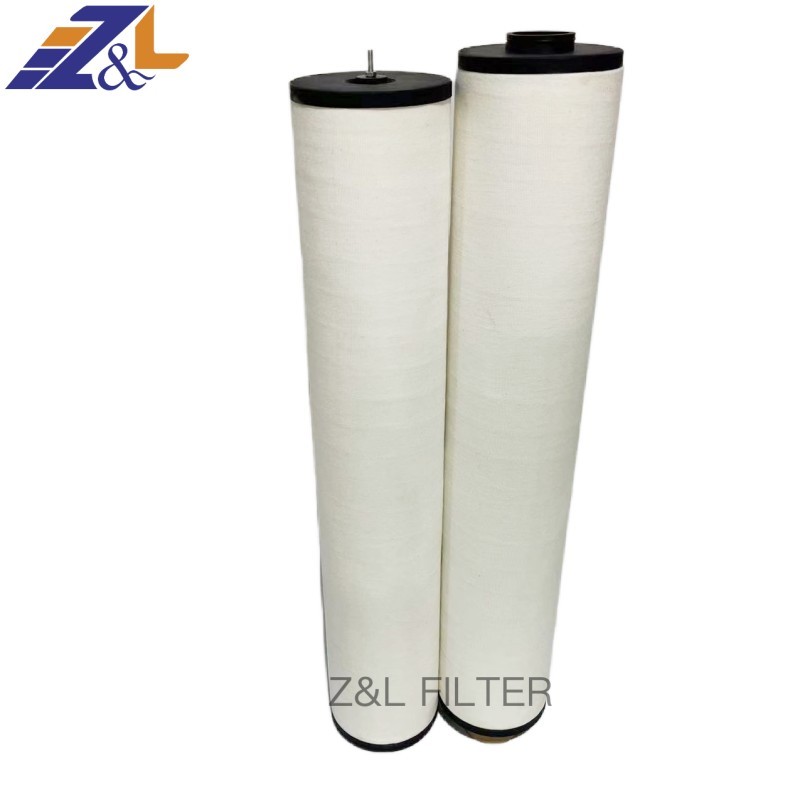

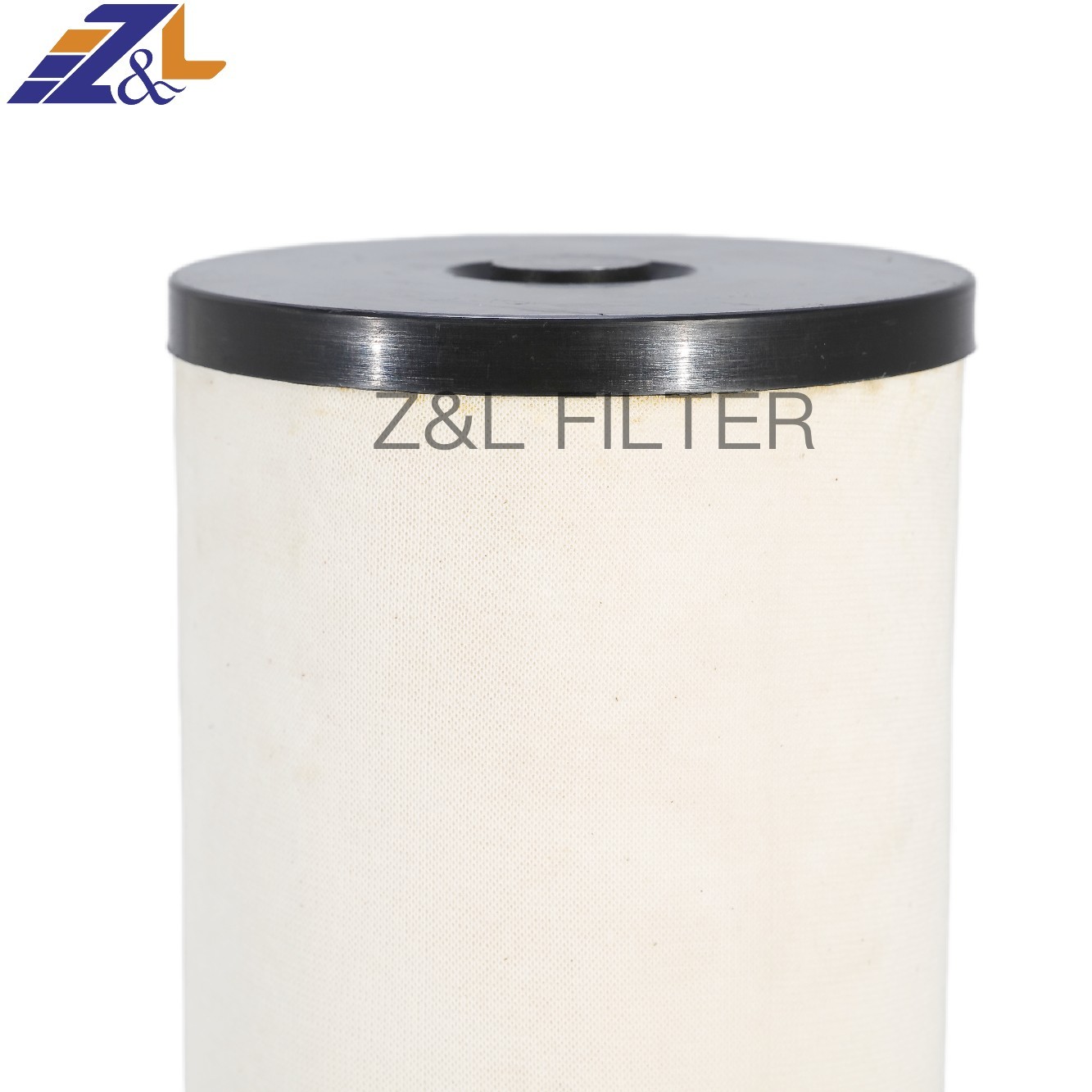

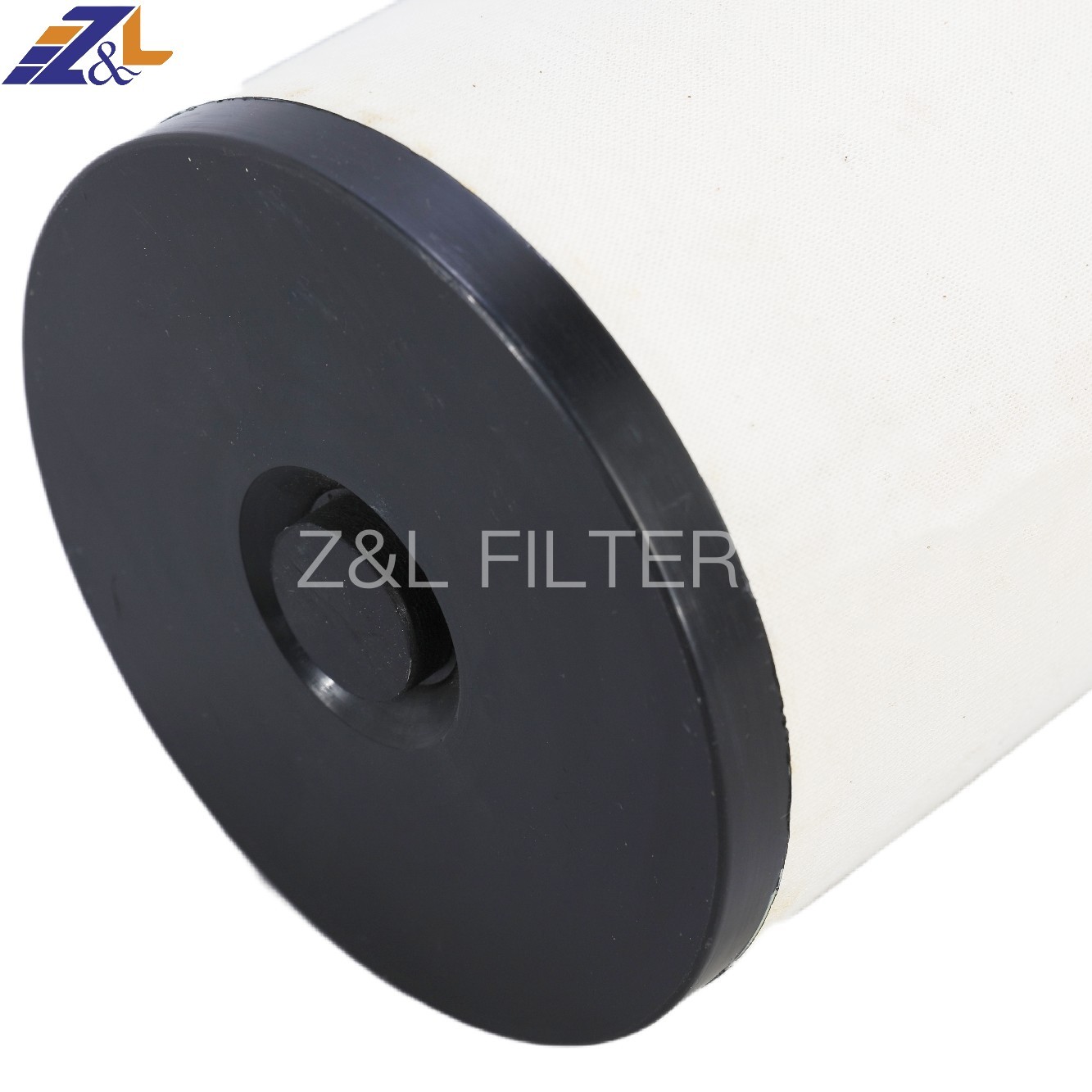

Z&L 1202846 Natural gas coalescing filter

Product Ability
Condition :New
Efficiency:99.9%
Construction:Cartridge Filter
Filtration Grade:Medium Filter
Medium Material:Fiberglass
Porosity:5 Micron
Place of Origin:Hebei, China
Brand Name:z&l filter
Model Number:1202846
Dimension(L*W*H):Standard
Weight:4.89kg
Certification:ISO 9001:2015
Coalescing Filter: Z&L 1202846 Natural gas coalescing filter
Application:Natural gas transmission pipeline
Filter Material: polyester fiber
End Caps:Galvanized
Inner Core:Galvanized Perforated Plate
Outer Cover:Cotton
Gasket:Rubber
Filtering Accuracy:5 Micron
Optional Frame:Stainless steel
Product Description
Z&L Gas / liquid coalescing filter with deep coalescence material,is used to remove small mist entrained in the gas,such as  carbon condensate. The filter media is superfine borosilicate glass fiber,which has a wide range of chemical compatibility.
 The filter has long service life, low pressure drop,fast liquid discharge rate,operation under higher pressure conditions. Gas flows through the inside to the outside and the mist is trapped. Multiple liquid mist build-up, gradually larger, then becomes a large droplet,separated from the gas on the outermost layer of the filter element and drained quickly.
Applicable gas: Air, fuel gas, natural gas, liquefied petroleum gas and other gas removal droplet filtration.

Product Features

High efficiency for droplets removal, stable coalescing performance
The coalesced droplets are rapidly discharged at the rapid discharge layer
Fixed hole structure, low pressure drop
Filter area is more than 8 times than the traditional tubular filter
Long service life, reduce the frequency of replacement and downtime
Protect downstream equipment
Overall high strength, suitable for high pressure operating conditions

Product Application
  • Used in natural gas pipeline compression station, sub-station gathering & transporting process, installed in the compressor before and after to remove condensate and lubricants to protect downstream equipment
  • To avoid frequent regeneration in front of gas drying tower and adsorption tower
  • To protect pneumatic components and instruments in instrument air duct pipeline
  • To protect the fuel gas nozzle in fuel gas pipeline
  • Gas pre-filtration of refinery unit and pre-filtration of CBM treatment
  • To prevent or reduce mist entrainment and foaming before Ammonia wash tower / ethylene glycol tower
  • Separation and recovery of running loss liquid ammonia and alcohol, to reduce losses after Ammonia wash tower / ethylene glycol tower
  • To remove entrained droplets to extend service life before molecular sieve / drying tower

Product Parameters
  • Max. operation temperature T: 240/116
  • Recommended replacement pressure Δp: 10PSID/0.069MPa
  • Max. pressure MΔp: 50PSID/0.34MPa
  • Flow direction: From inside to outside
  • Filtration efficiency: Max.99.99%

Remark: Filtration efficiency is different due to different gas pressure, temperature and other factors

Related Supplying

Hydraulic oil filters
Dseries:0030D series、 0035D series、 0055Dseries、0060Dseries、0075Dseries、0095Dseries、0110Dseries、0140Dseries、0160Dseries、0240Dseries、0280Dseries、0330Dseries、0500Dseries、0660Dseries、0990Dseries、
RNseries:0040RNseries 、0063RNseries、0100RNseries、0160RNseries、0250RNseries、0400RNseries、0630R Nseries、0400DNseries
R series:0030Rseries、0060Rseries、0110Rseries、0160Rseries、0240Rseries、0330Rseries、0660Rseries、0850Rseries、0950Rseries、1300Rseries、1320Rseries、1700Rseries、26007Rseries
Air filters ,oil and air seaprators
Optional/alternative/replacement Donald air filters
HC2208 SERIES,HC2206,HC2207,HC2238,HC2296,HC2286,HC2216 ,HC8300,HC9100,HC2217,HC2238,HC2618,HC2225 Series
Thermal power and nuclear power: steam turbine, boiler lubrication system, speed control system, fan and dust removal system purification.
Machinery processing equipment: paper machinery, mining machinery and large precision machinery system of medium purification
Product advantages
High resistance to variable operating pressures and flow rates contribute to one of the highest dirt-holding capacities and filtration efficiencies on the market
Filters contain more pleats and surface area than many competitors
Consistent filter efficiency, even at high differential pressure
Exceptional value and price-performance ration
Improved system reliability
Decreased number of maintenance operations
Lower maintenance costs
Extended filter element life
Customized solutions for specific filtration challenges
 Product application
Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.
