Hydraulic Oil Filter
Home- Products - Hydraulic Oil Filter

BE83003906A, H8300/39-005BN. 1.06.39D06BN. 02060638

INQUIRY
Description

Quick Details
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Energy & Mining, industry
Core Components:filter element
Condition:New
Efficiency 99.98%
Construction:Cartridge Filter
Place of Origin:Hebei, China
Brand Name:Z&L FILTER
Dimension(L*W*H)110mm/160mm/990mm
Filter material: galvanized steel cartridge ,glass fiber ,ss caps and bottoms
Support:polypropylene
End cap:polypropylene
Sealing materia:rubber ,
Maximum differential pressure:4.0Bar
terilization temperature:120℃ per min
Certification:ISO9001,SGS


Product Parameters

Product Name hydraulic oil filter cartridge /filter element
Filter medium glass fiber
Support layer Carbon steel
Filter cage Carbon steel
Pore size 10.20.25.50.um
Length 600-1000mm
Sealing material Silastic, NBR, EPDM,
Airtight method: thermal bonding technique
Effective filtration area 0.4~0.7m²/10"
Diameter 50-150mm
Max. operating temperature 90°C,(ΔP≤0.1Mpa)
Max. positive pressure 0.42Mpa(25°C)
Max. back pressure 0.28Mpa(25°C)
PH value  1—13
Sterilizing temperature 121°C  30min
Product Advantage

Multi-layered media for increased solids holding capacity
• Ultra-fine solids removal
• Maximum water coalescence
• Balanced cartridge flow characteristics
• Recommended maximum operating temperature: 240°F (115oC)
• Withstands in excess of 75 psi differential pressure
• PH range from 5 to 9
• Screw base or open-end configuration


Production Application

• Gas Processing Amine and glycol
• Natural Gas Production & Gathering Amine, glycol, produced water, well completion fluids
• General Industrial Pre-R.O., well injection, bottle wash, water, solvents,acids, alkalis, alcohols
• Industrial Water, solvents, acids, D.I. , alcohols
• Food & Beverage Water, flavorings, beer, wine, vinegar

Related series no.
BE8300/16-03A H8300/16-003BN 1.06.16D03BN 02060876
BE8300/16-03AV H8300/16-003BN-V 1.06.16D03BN/-V 02062215
BE8300/16-06A H8300/16-005BN 1.06.16D06BN 02060877
BE8300/16-12A H8300/16-010BN 1.06.16D12BN 02060878
BE8300/16-25A H8300/16-020BN 1.06.16D25BN 02060879
BE8300/16-25AV H8300/16-020BN-V 1.06.16D25BN/-V 02069632
BE8300/39-03A H8300/39-003BN 1.06.39D03BN 02060637
BE8300/39-03AV H8300/39-003BN-V 1.06.39D03BN/-V 02063569
BE8300/39-06A H8300/39-005BN 1.06.39D06BN 02060638
BE8300/39-06AV H8300/39-005BN-V 1.06.39D06BN/-V 02056539
BE8300/39-12A H8300/39-010BN 1.06.39D12BN 02060639
BE8300/39-12AV H8300/39-010BN-V 1.06.39D12BN/-V 02070199
BE8300/39-25A H8300/39-020BN 1.06.39D25BN 02060640
BE8300/8-03A H8300/8-003BN 1.06.08D03BN 02060533
BE8300/8-06A H8300/8-005BN 1.06.08D06BN 02060534
BE8300/8-06AV H8300/8-005BN-V 1.06.08D06BN/-V 02063465
BE8300/8-12A H8300/8-010BN 1.06.08D12BN 02060535
BE8300/8-25A H8300/8-020BN 1.06.08D25BN 02060536
BE8300/8-25AV H8300/8-020BN-V 1.06.08D25BN/-V 02062268

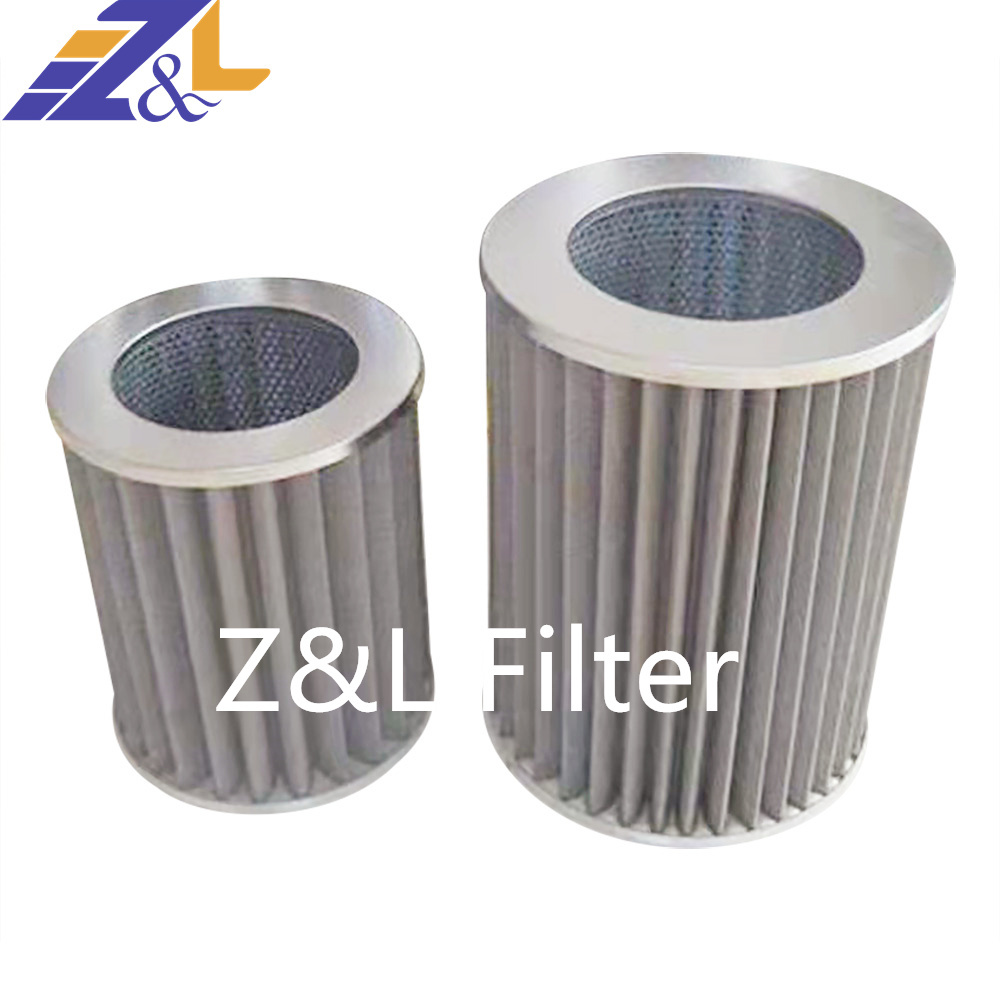

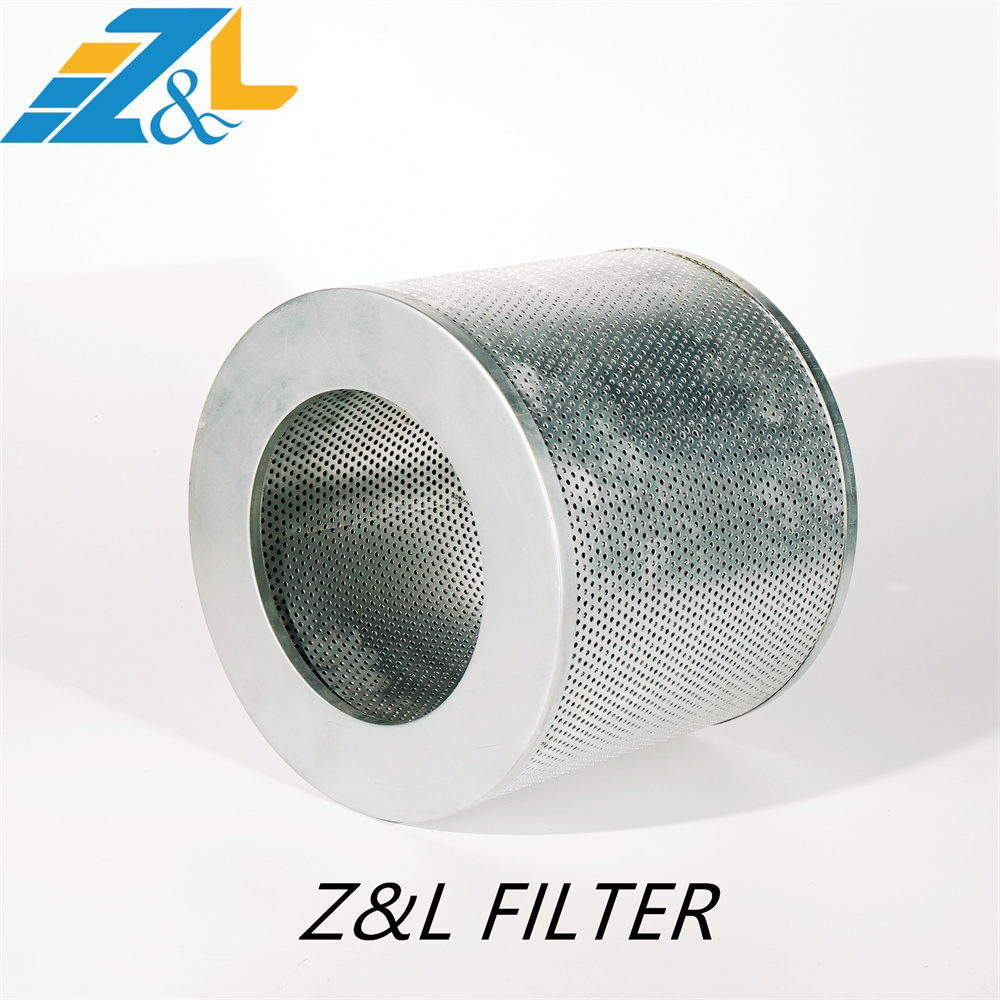

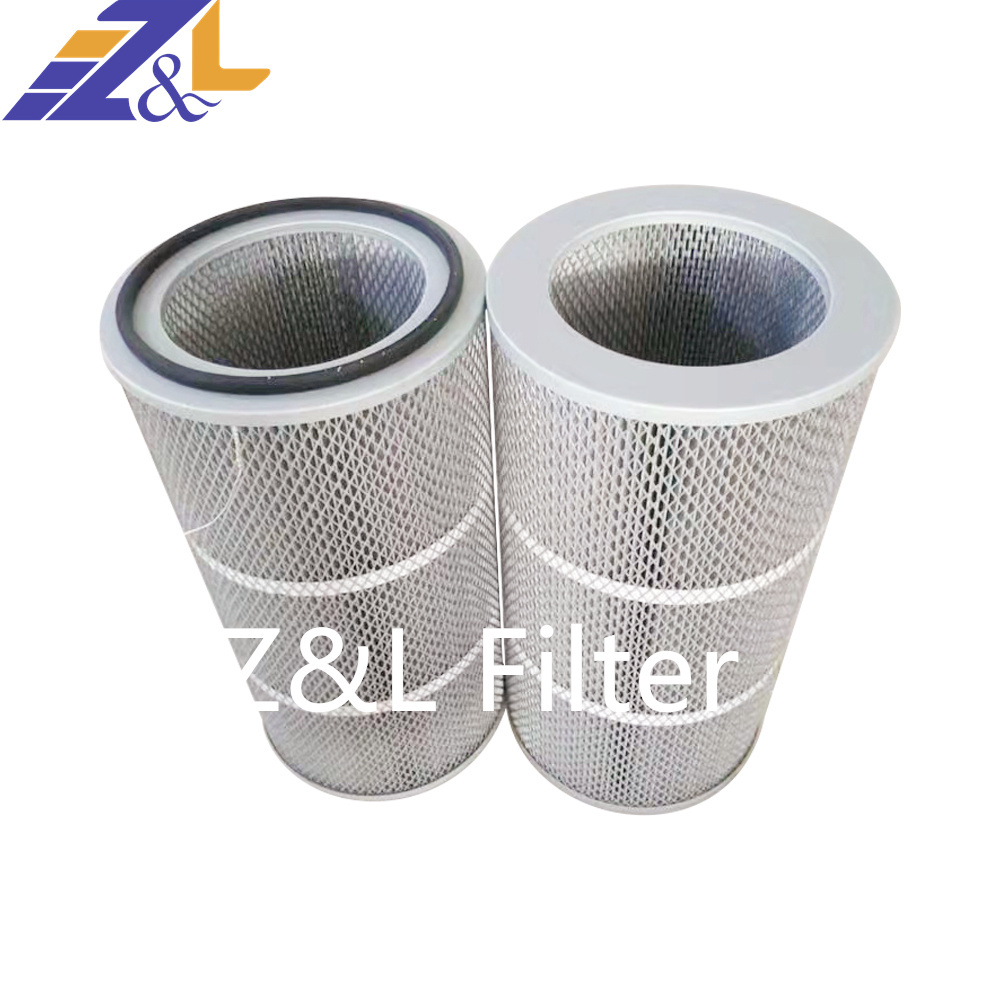

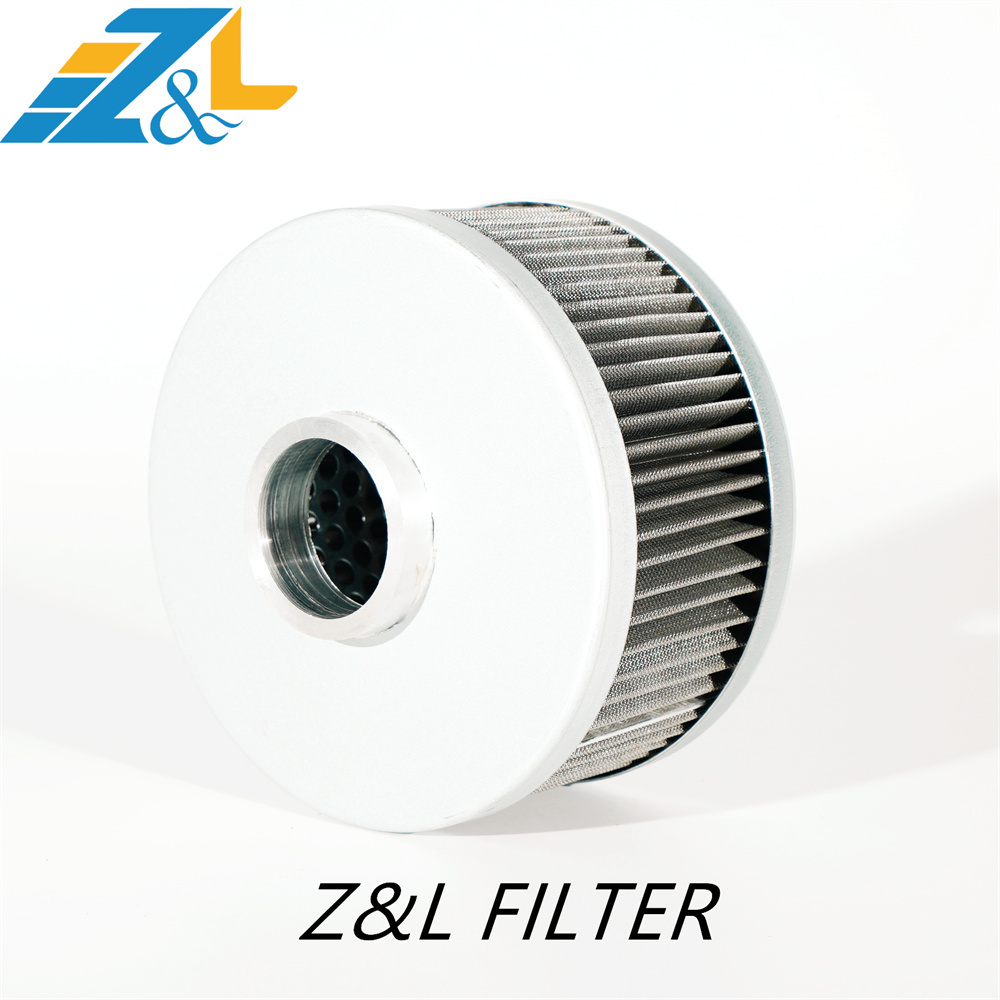

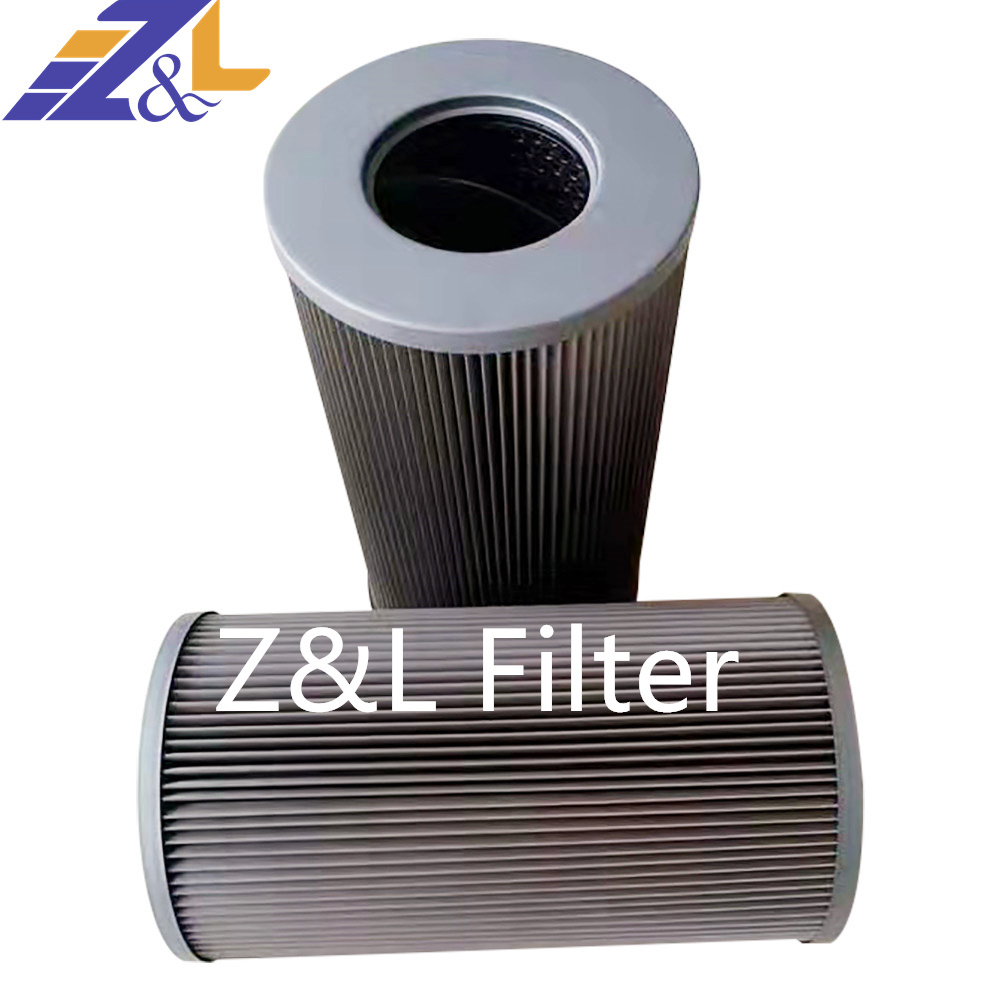

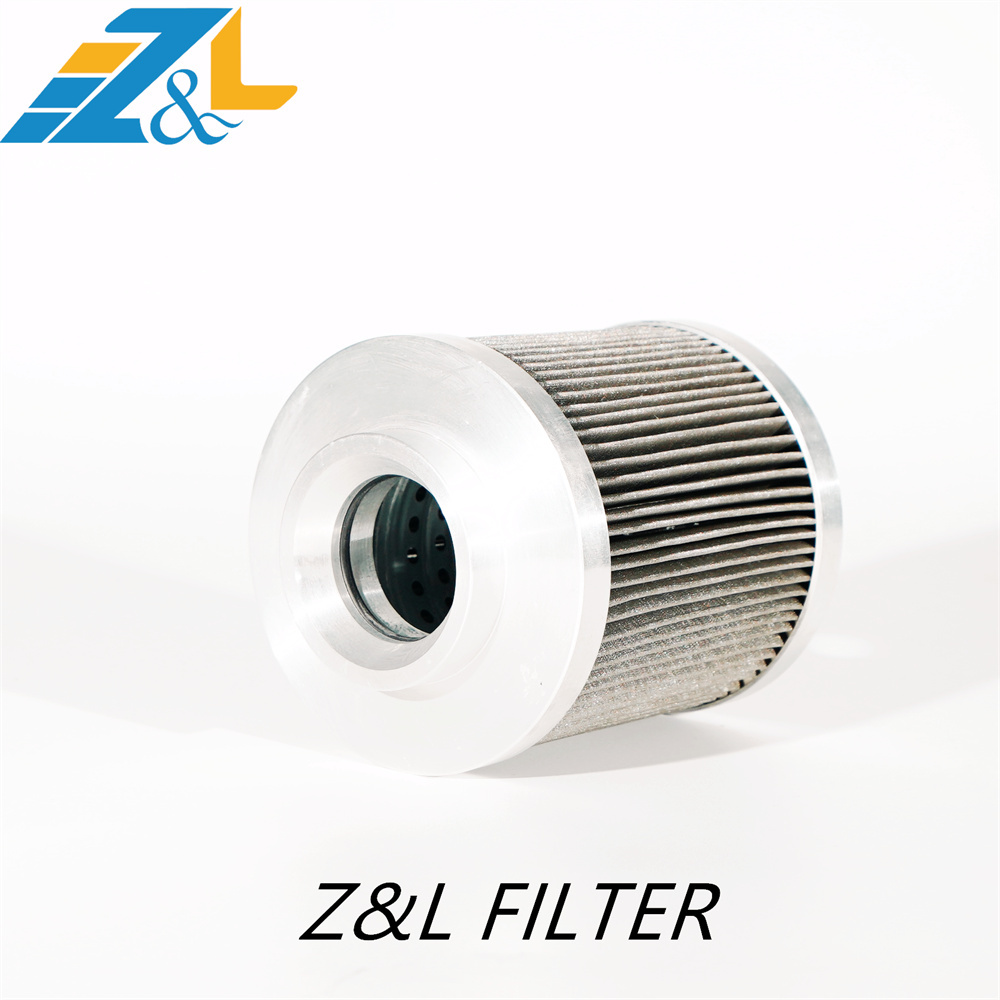

 Detailed Image for Product:



Our Service:
Service Provide:
OEM ODM & OBM service, printing or logo information is acceptable.

Quality Guarantee:
All products have to pass strict inspection before they go out. If any problems caused by the product itself,
we will supply you the new replaced ones ASAP.


After-sales Service:
Any problems caused by using our products:

1) Keep the problem products and timely contact with us for better feedbacks.

2) Please do not damage problem products, if necessary, Send the
    products and the attached oil and the coolant sample together to us for better analyzing

3) Attached with repair document, parts list, labor costs and any other materials which
    can support a claim for compensation.


 Z&L Filter supply other replacement hydraulic return oil filter element part numbers:

0240R series
0240R003BN/HC 0240R005BN/HC 0240R010BN/HC 0240R020BN/HC
0240R003BN3HC 0240R005BN3HC 0240R010BN3HC 0240R020BN3HC
0240R003BN4HC 0240R005BN4HC 0240R010BN4HC 0240R020BN4HC
0240R003BN/HC 0240R005BN/HC 0240R010BN/HC 0240R020BN/HC
0240R020P 0240R020W
0330R filter series
0330R003BN/HC 0330R005BN/HC 0330R010BN/HC 0330R020BN/HC
0330R003BN3HC 0330R005BN3HC 0330R010BN3HC 0330R020BN3HC
0330R003BN4HC 0330R005BN4HC 0330R010BN4HC 0330R020BN4HC
0330R003BN/HC 0330R005BN/HC 0330R010BN/HC 0330R020BN/HC
0330R020P 0330R020W
0660R filter series
0660R003BN/HC 0660R005BN/HC 0660R010BN/HC 0660R020BN/HC
0660R003BN3HC 0660R005BN3HC 0660R010BN3HC 0660R020BN3HC
0660R003BN4HC 0660R005BN4HC 0660R010BN4HC 0660R020BN4HC
0660R003BN/HC 0660R005BN/HC 0660R010BN/HC 0660R020BN/HC
0660R020P 0660R020W
0850R filter series
0850R003BN/HC 0850R005BN/HC 0850R010BN/HC 0850R020BN/HC
0850R003BN3HC 0850R005BN3HC 0850R010BN3HC 0850R020BN3HC
0850R003BN4HC 0850R005BN4HC 0850R010BN4HC 0850R020BN4HC
0850R003BN/HC 0850R005BN/HC 0850R010BN/HC 0850R020BN/HC
0850R020P 0850R020W
0950R filter series
0950R003BN/HC 0950R005BN/HC 0950R010BN/HC 0950R020BN/HC
0950R003BN3HC 0950R005BN3HC 0950R010BN3HC 0950R020BN3HC
0950R003BN4HC 0950R005BN4HC 0950R010BN4HC 0950R020BN4HC
0950R003BN/HC 0950R005BN/HC 0950R010BN/HC 0950R020BN/HC
0950R020P 0950R020W
1300R filter series
1300R003BN/HC 1300R005BN/HC 1300R010BN/HC 1300R020BN/HC
0990D003BN3HC 1300R005BN3HC 1300R010BN3HC 1300R020BN3HC
0990D003BN4HC 1300R005BN4HC 1300R010BN4HC 1300R020BN4HC
1300R003BN/HC 1300R005BN/HC 1300R010BN/HC 1300R020BN/HC
1300R020P 1300R020W
2600R filter series
2600R003BN/HC 2600R005BN/HC 2600R010BN/HC 2600R020BN/HC
2600R003BN3HC 2600R005BN3HC 2600R010BN3HC 2600R020BN3HC
2600R003BN4HC 2600R005BN4HC 2600R010BN4HC 2600R020BN4HC
2600R003BN/HC2600R005BN/HC2600R010BN/HC2600R020BN/HC 2600R020P
