Product Name | hydraulic oil filter cartridge /filter element |
Filter medium | glass fiber |
Support layer | Carbon steel |
Filter cage | Carbon steel |
Pore size | 10.20.25.50.um |
Length | 400mm,355mm |
Sealing material | Silastic, NBR, EPDM, |
Airtight method: | thermal bonding technique |
Effective filtration area | 0.4~0.7m²/10" |
Diameter | 30-50mm |
Max. operating temperature | 90°C,(ΔP≤0.1Mpa) |
Max. positive pressure | 0.42Mpa(25°C) |
Max. back pressure | 0.28Mpa(25°C) |
PH value | 1—13 |
Sterilizing temperature | 121°C 30min |
Multi-layered media for increased solids holding capacity |
• Ultra-fine solids removal |
• Maximum water coalescence |
• Balanced cartridge flow characteristics |
• Recommended maximum operating temperature: 240°F (115oC) |
• Withstands in excess of 75 psi differential pressure |
• PH range from 5 to 9 |
• Screw base or open-end configuration |
• Gas Processing | Amine and glycol |
• Natural Gas Production & Gathering | Amine, glycol, produced water, well completion fluids |
• General Industrial | Pre-R.O., well injection, bottle wash, water, solvents,acids, alkalis, alcohols |
• Industrial | Water, solvents, acids, D.I. , alcohols |
• Food & Beverage | Water, flavorings, beer, wine, vinegar |
BE280P03A | 0280D003BN3HC | 2055758 |
BE280P03AH | 0280D003BH3HC | 2056396 |
BE280P03AHE | 0280D003BH3HC/EPR | 2059849 |
BE280P06A | 0280D005BN3HC | 2055759 |
BE280P06AH | 0280D005BH3HC | 2056397 |
BE280P12A | 0280D010BN3HC | 2055760 |
BE280P12AH | 0280D010BH3HC | 2056398 |

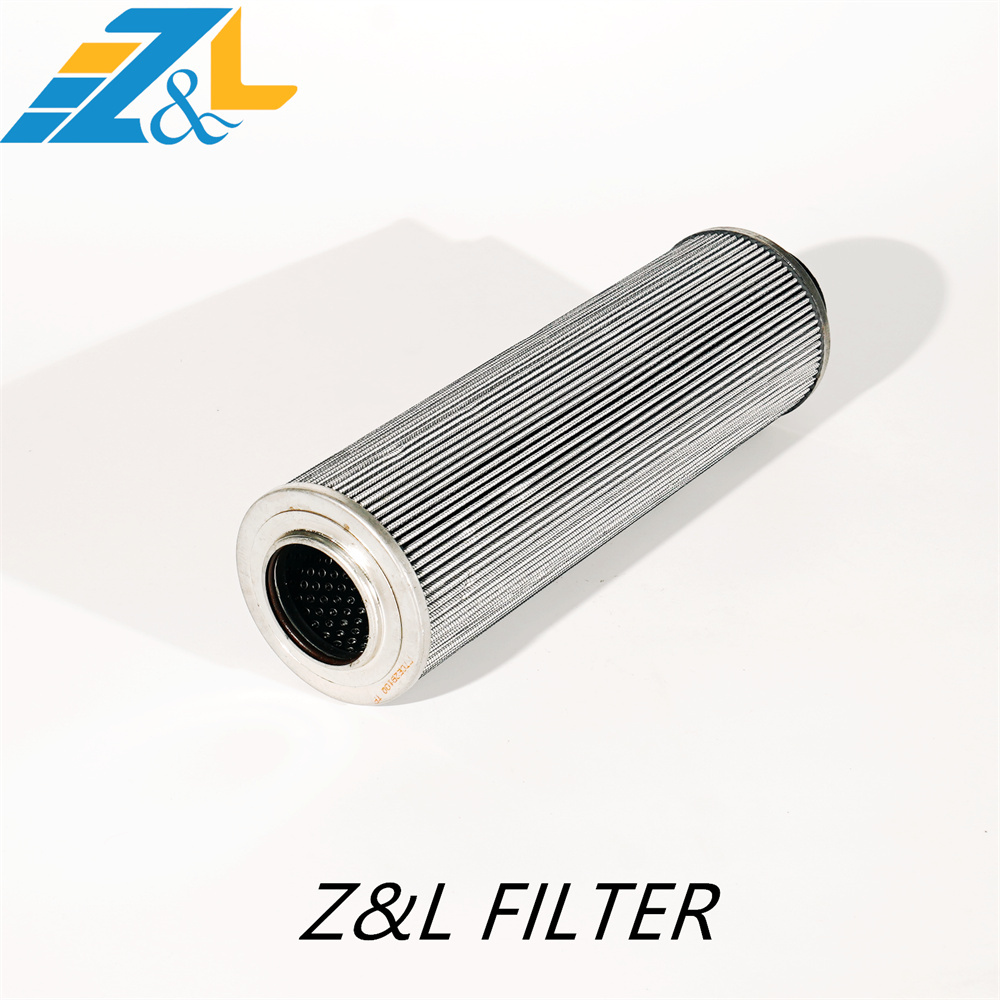

BE280P12AV | 0280D010BN3HC-V | 2070266 |
BE280P25A | 0280D020BN3HC | 2055761 |
BE280P25AH | 0280D020BH3HC | 2056399 |
BE280P25AV | 0280D020BN3HC/V | 2069848 |
