Product overview
In the hydraulic system, liming hydraulic oil filter core is mainly used to filter solid particles and colloidal substances in the working medium and effectively control the contamination degree of the working medium.

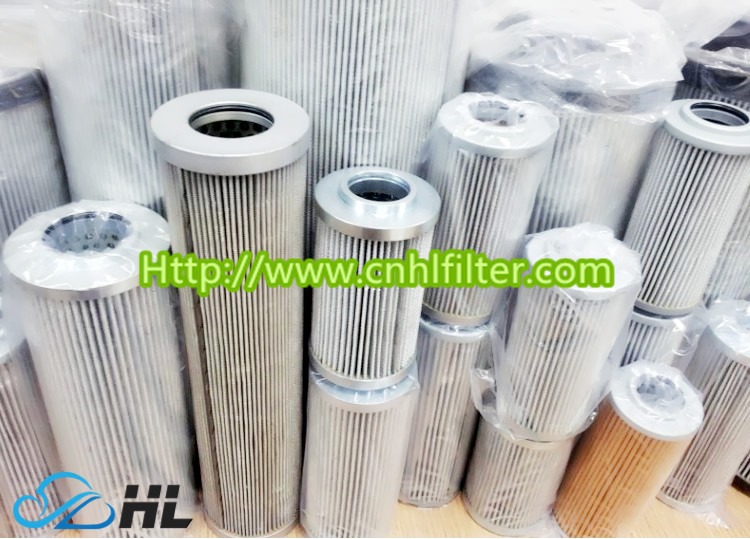

Dawn hydraulic oil filter element
Widely used in petroleum, chemical, metallurgy, aviation, electronics, electric power, pharmaceutical, environmental protection, atomic energy, nuclear industry, natural gas, refractories, fire equipment and other areas of purification.
According to the installation position in the hydraulic system, dawn hydraulic oil filter core is divided into suction pipeline filter core, pressure pipeline filter core and return pipeline filter core.
Oil suction pipe line filter: oil suction pipe line (oil tank -- hydraulic pump inlet) or installation of oil suction filter core directly in the oil tank is a necessary measure to protect the hydraulic pump. Its accuracy is generally 100~180 million, which is determined according to different self-suction capacity of the pump. Excessive flow resistance leads to air corrosion of the hydraulic pump.
Pressure pipeline filter, oil filter, pipeline is not only to protect its downstream components, as the main oil filter oil pollution, guarantee system through efficient purification of oil itself, also have very good protection effect for hydraulic pumps, filtration precision for 5 to 10 microns, the filter pressure big, vibration also is very hot, the pressure pipeline oil filter the permission of the differential pressure, according to the different pressure levels, in the range of 0.3 ~ 0.7 MPa.As the pressure pipeline oil filter for ground equipment, cost and installation space are taken into consideration.
Return line filter: various contaminants produced by various components in the process of operation can be intercepted by setting the return line oil filter to avoid returning to the oil tank and being sucked into the hydraulic pump again. The allowable pressure difference of return line oil filter is between 0.3 and 0.5MPa according to different pressure levels.The accuracy is determined according to the pollution degree of oil.Back to the oil pipe line filter Settings to consider more factors to some, is one of the important factors of hydraulic impact, especially with the hydraulic cylinder and proportional valve upstream cases, under the high pressure hydraulic cylinder of the reversing and suddenly drop electric proportional valve, will have a great moment of traffic impact, the oil filter filter could do a lot of damage, in the design of return pipe fully when the oil filter to realize, on the structure shall be strengthened.
folding
Edit this section
Range of application
1. Metallurgy: used for filtering the hydraulic system of rolling mill, continuous casting machine and various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, purification of liquid purification, magnetic tape, CD and photographic film in manufacturing, oil field water injection well and natural gas particle removal filtration.
3. Textile: purification and uniform filtration of polyester melt in the wire drawing process, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronic and pharmaceutical: pretreatment filtration of reverse osmosis water and deionized water, and pretreatment filtration of cleaning liquid and glucose.
5. Mechanical processing equipment: paper machinery, mining machinery, lubricating system of injection molding machine and large precision machinery, purification of compressed air, dust recovery and filtration of tobacco processing equipment and spraying equipment.
6. Railway internal combustion engine and generator: oil and oil filtration.
7. Hydraulic oil filter for automobile engine, engineering machinery, ship and truck.
8. Thermal power and nuclear power: gas turbine, boiler lubrication system, speed control system, bypass control system oil purification, water supply pump, fan and dust removal system purification
9. Various lifting and handling operations: lifting, loading and other engineering machinery to special vehicles such as fire fighting, maintenance and handling; cargo winch and anchor lift of ships; blast furnace and steelmaking equipment; ship locks; lifting and closing devices of ship doors; lifting pool and lifting stage of theater; various automatic transportation lines.
10, all kinds of need of forces pushing, shoving, pressure, cut, cut, mining device such as a homework: hydraulic presses, die casting, metal material forming, rolling, rolling, stretching, shearing equipment, plastic injection molding machine, plastic extrusion machine, chemical machinery, tractors, harvesters, and other mechanical agriculture and forestry, logging, mining tunnel, mine and the ground of mining equipment, all kinds of ship steering gear, etc.
11, high response, high precision of control: artillery track drive, the stability of the turret, ships of extinction, aircraft and missile attitude control device, such as machine and high precision positioning system, drive and control of the industrial robot, the thickness of the sheet metal press, leather section control, power generator speed regulation control, high-performance vibration table and testing machine, large multi degree of freedom motion simulator and recreational facilities, etc.
12. Automatic control and control of a variety of work procedures: combined machine tools, mechanical processing automatic line, etc.
13. Special workplace: operating equipment in the special environment such as underground, underwater and explosion-proof.
