Derscription :

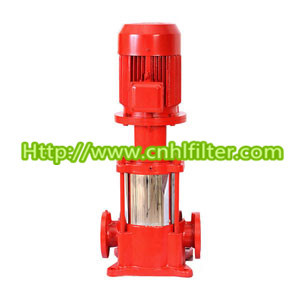

QDL/QDLF is a latest vertical multistage pump with light weight. It has the features of energy-saving, environmental friendly, less space demand, easy installation, stable performance and convenient maintenance. The pump is made of AISI 304 stainless steel with excellent quality. Such an ideal pump is a perfect substitute for the former pressurizing pumps.
Parameters
Flow range: 0.8~120m³/h
Head range: 5.6~33.m
System pressure: ≤1.0MPa
Working Conditions
1. Clean cold or hot fluid without solid particles and fibers. Inflammable and explosive liquids are not allowed.
2. Medium temperature: -15ºC~+120ºC
3. Working temperature: ≤+40ºC
Model Meaning
QDL(F)8-20
QDL: Light Vertical Non Self-priming Multistage Centrifugal Pump
F: Stainless Steel Flow Passage Components
8: Rated Flow (m3/h)
20: Stage x10
Application Scope:
Normal model is suitable for fluid delivery, circulation and pressurizing for hot or cold drinking water and softened water.
The stainless steel model is suitable for brackish water, mineral water, distilled water, swimming pool water and other fluids with chloride. On this condition, the fluid temperature should be lower than the former one.
Typical Applications
1. Municipal water supply and pressurization
2. Industrial cycle systems and processing systems
3. Boiler feed water and cooling fluid systems
4. Home water supply
5. Environmental water treatment, osmosis systemsAgriculture irrigation and dewatering
6. Various cleaning, such as factory building cleaning
7. Other special applications
